TCX 25
Hull Coating Removal Vehicle

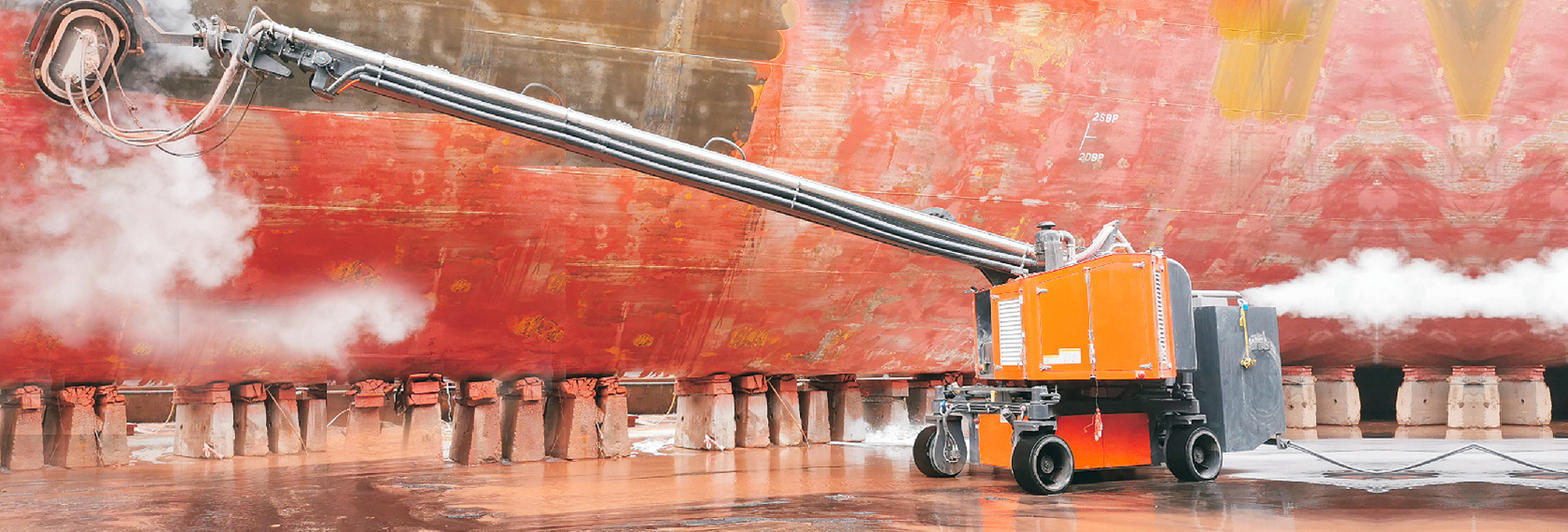

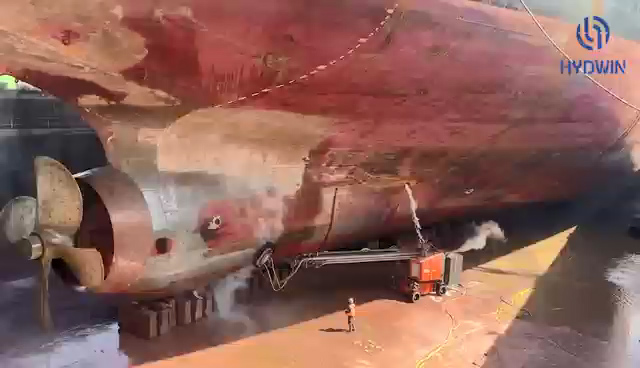

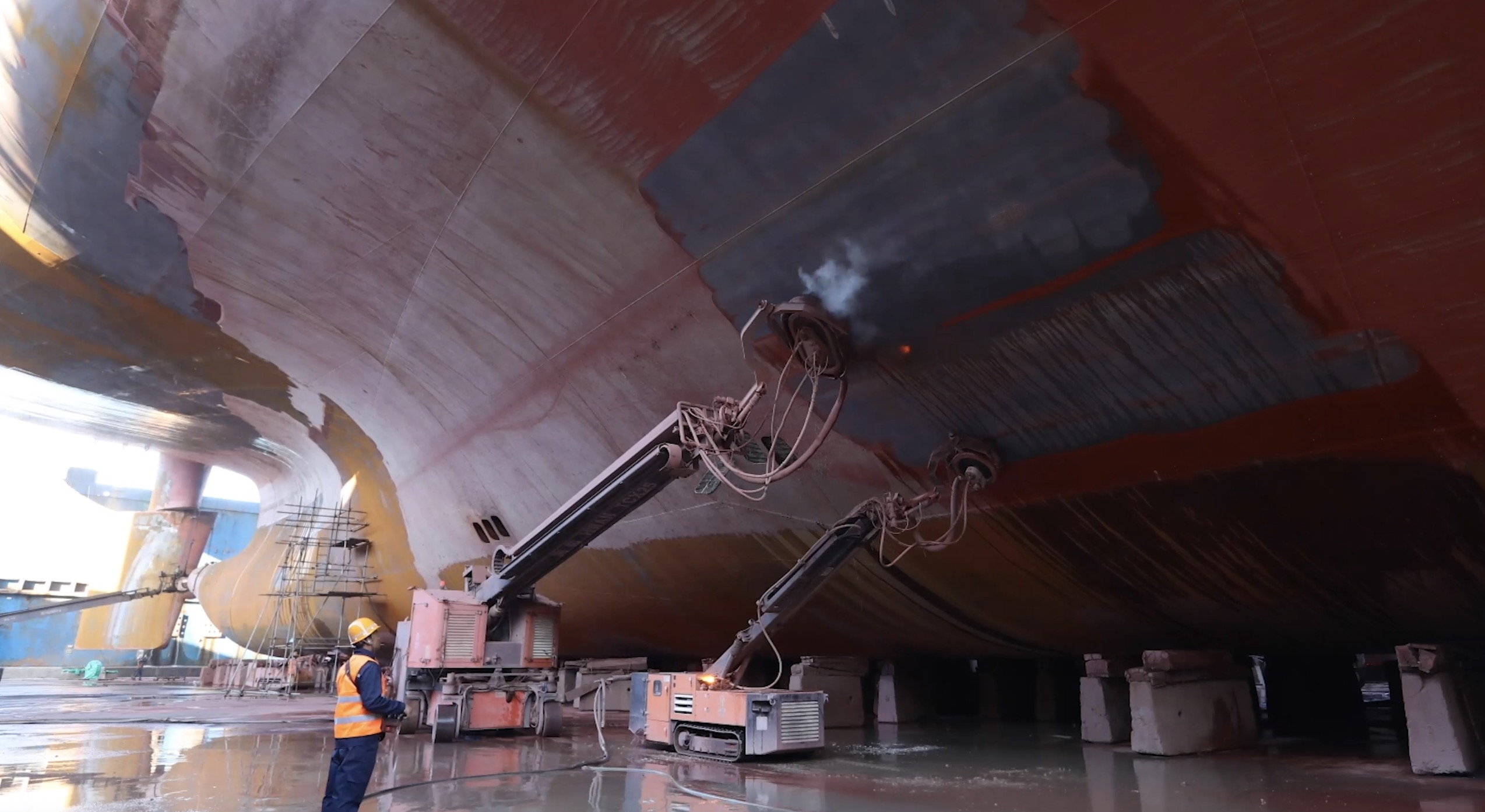

TCX 25, using ultra-high-pressure water jet technology and HYDWIN's AI-driven algorithms, is designed for the surface preparation of complex areas like large flat surfaces on ship sides, the bow, and stern. Operating at a maximum water pressure of 3000 bars and capable of reaching a working height of up to 25 meters, TCX 25 achieves a maximum derusting efficiency of 120 m²/h and meets WJ-2 / Wa 2½ (near-white metal grade) standards. This advanced system ensures effective, efficient, and environmentally friendly ship hull cleaning, significantly reducing maintenance time and enhancing the overall performance and longevity of new coatings.

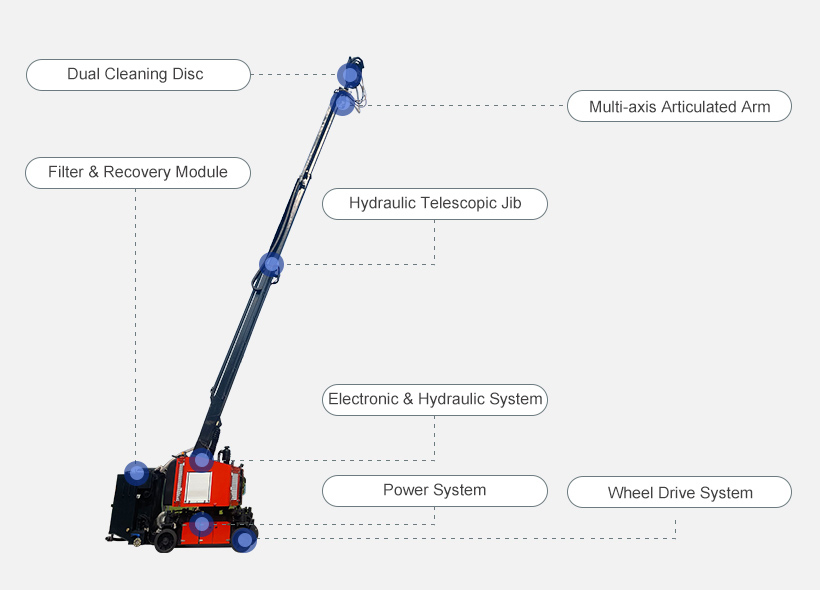

KEY FEATURES

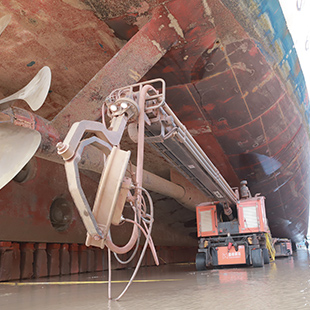

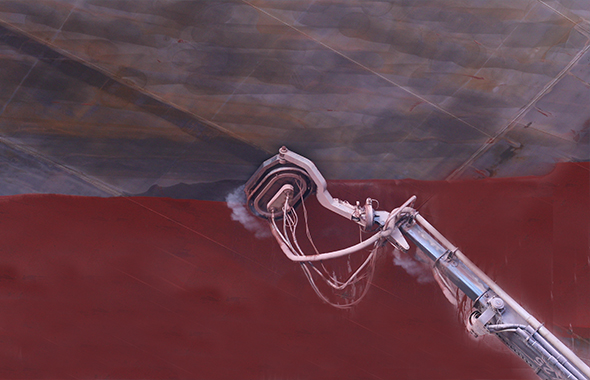

Dual Cleaning Head
- Dual spray bars, high-density brush, and optimized layout for even high-pressure impact
- Core algorithms ensure pressure and force compensation, enhancing efficiency
- High-efficiency, dust-free operation with dual cleaning discs reducing maintenance time
Electronic & Hydraulic System

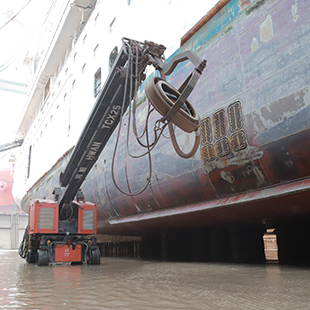

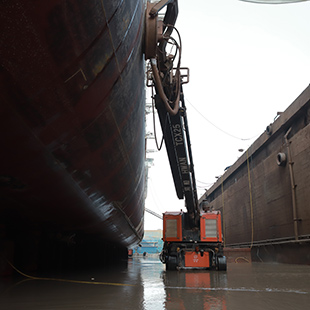

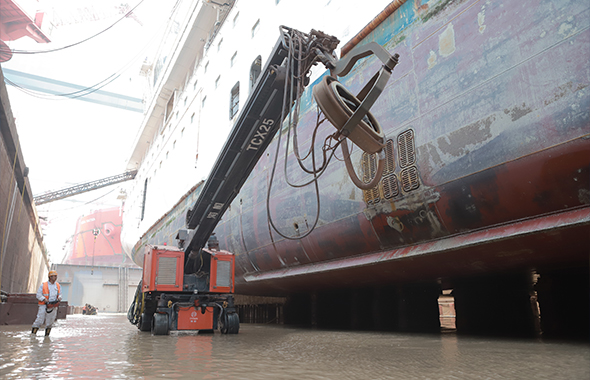

- Three-section hydraulic telescopic jib, 25-meter max height, multi-axis joint, and hydraulically adjustable working arm
- Sensor and hydraulic valve control ensures constant contact force
- Boom arm adapts to ship curvature, automatically compensates for distance change

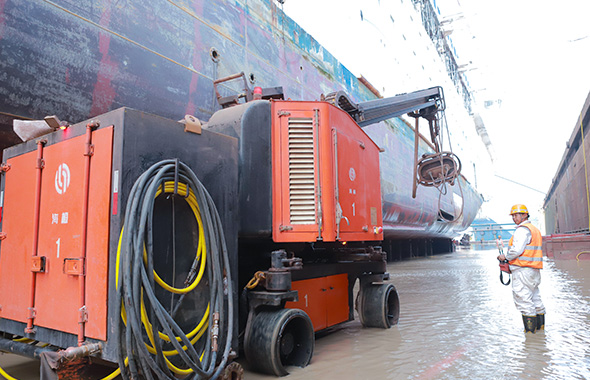

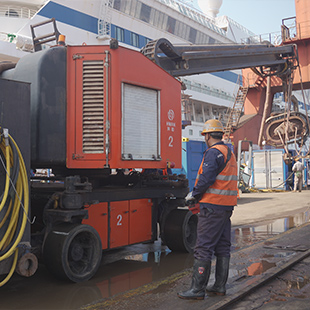

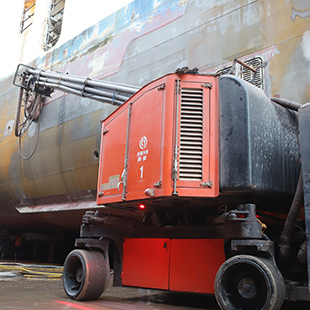

Wheel Drive System
- Powerful at low speeds and stable at constant speeds, easily navigating bumps, potholes, and dock passageways
- Solid rubber tires, universal four-wheel drive, and excellent maneuverability in narrow spaces
- Differential steering with real-time monitoring to improve passability and reduce tire wear
CONFIGURATION PARAMETERS
| Items |
TCX 25 |
| Max. Height |
25 m |
| Max. Pressure |
3000 bar |
| Max. Flow |
100 l/min |
| Working Capacity | up to 120 sqm/h |
| Engine Power |
96 kW@2500 rpm, Stage IV |
| Engine Consumption |
≤14.8 l/h |
| Fuel Tank |
200 L |
| Weight |
22 T |
| Dimensions |
14771 mm x 2720 mm x 3443 mm |
| Cleanliness Standard | Wa 2.5/WJ 2 |
