TCD 10
Hull Coating Removal Vehicle

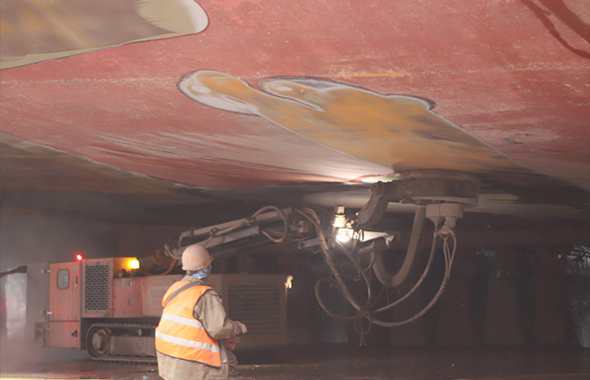

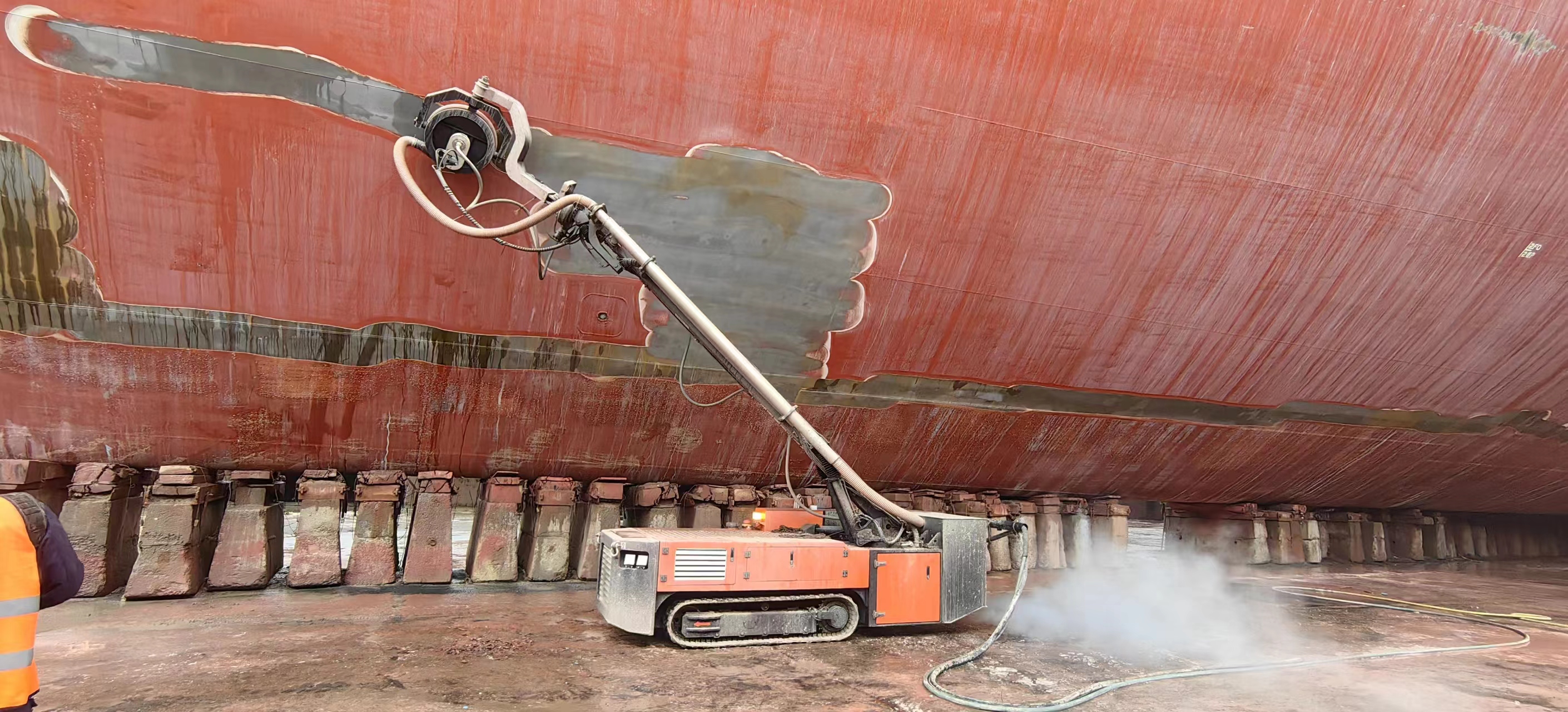

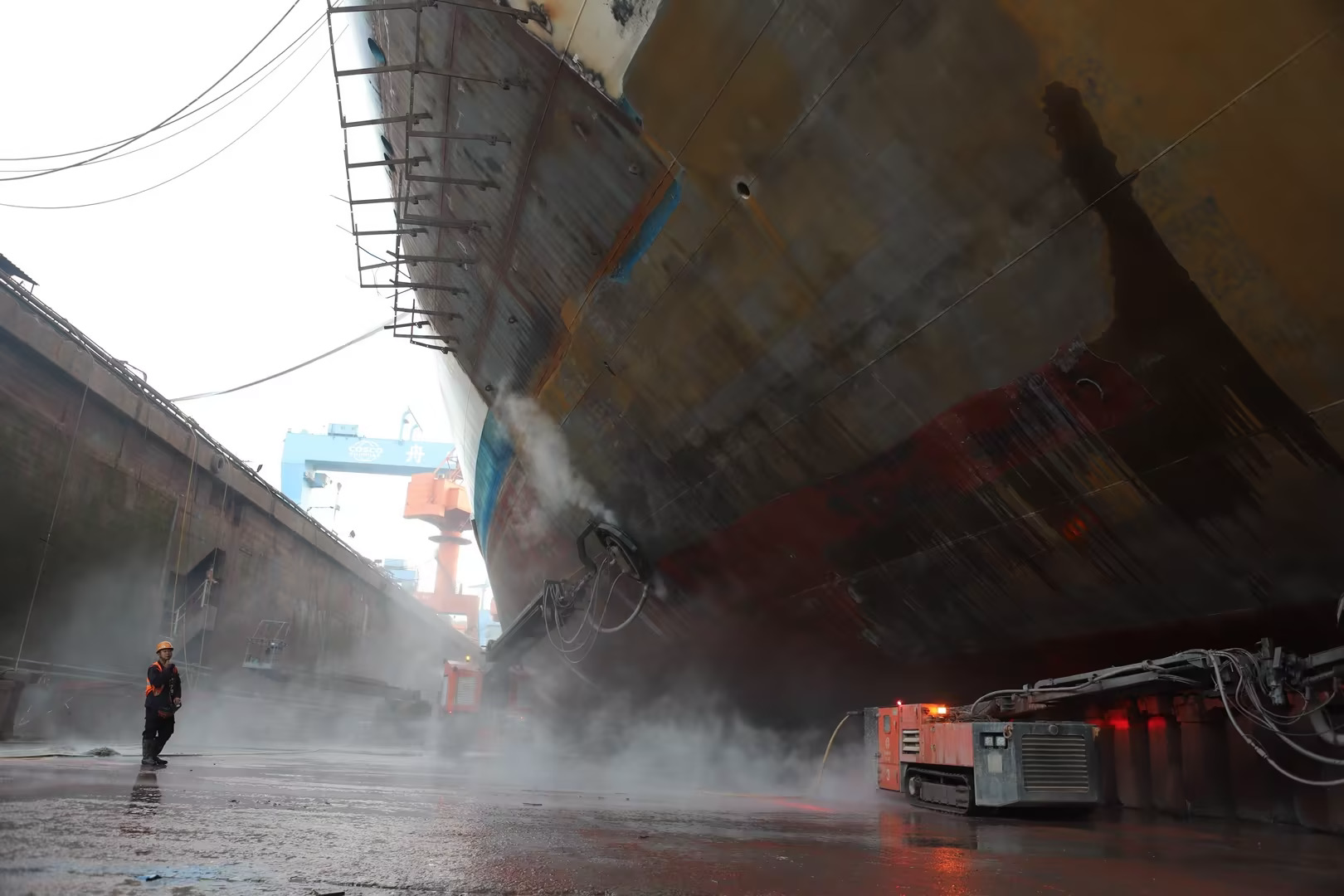

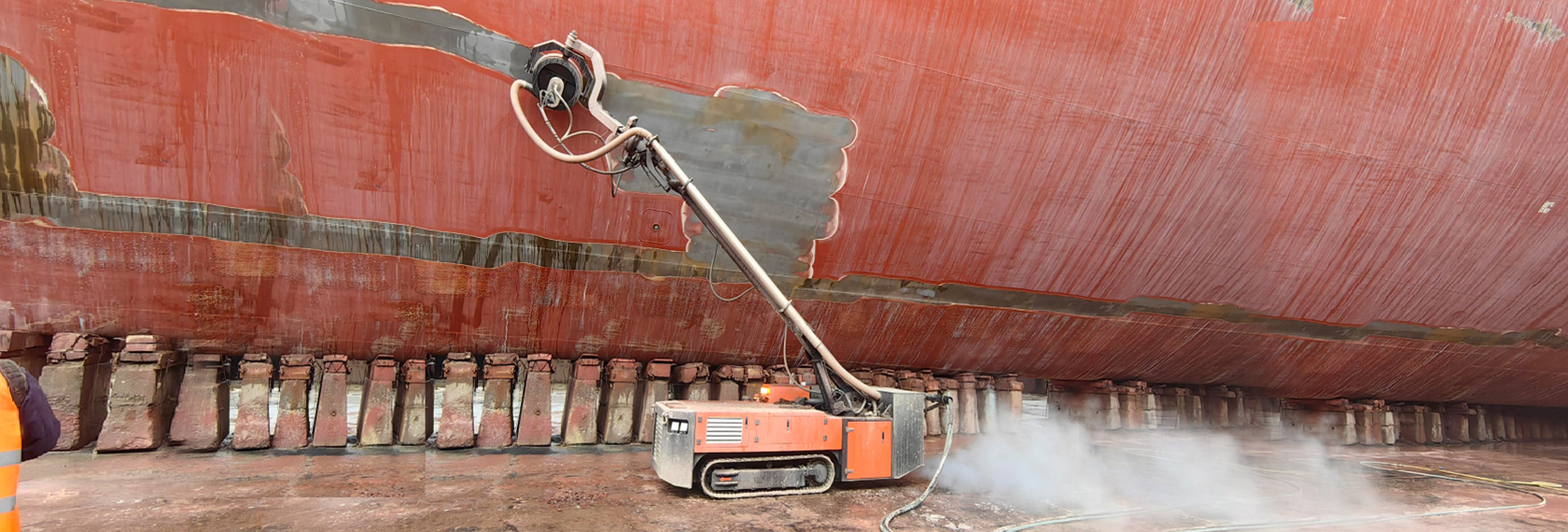

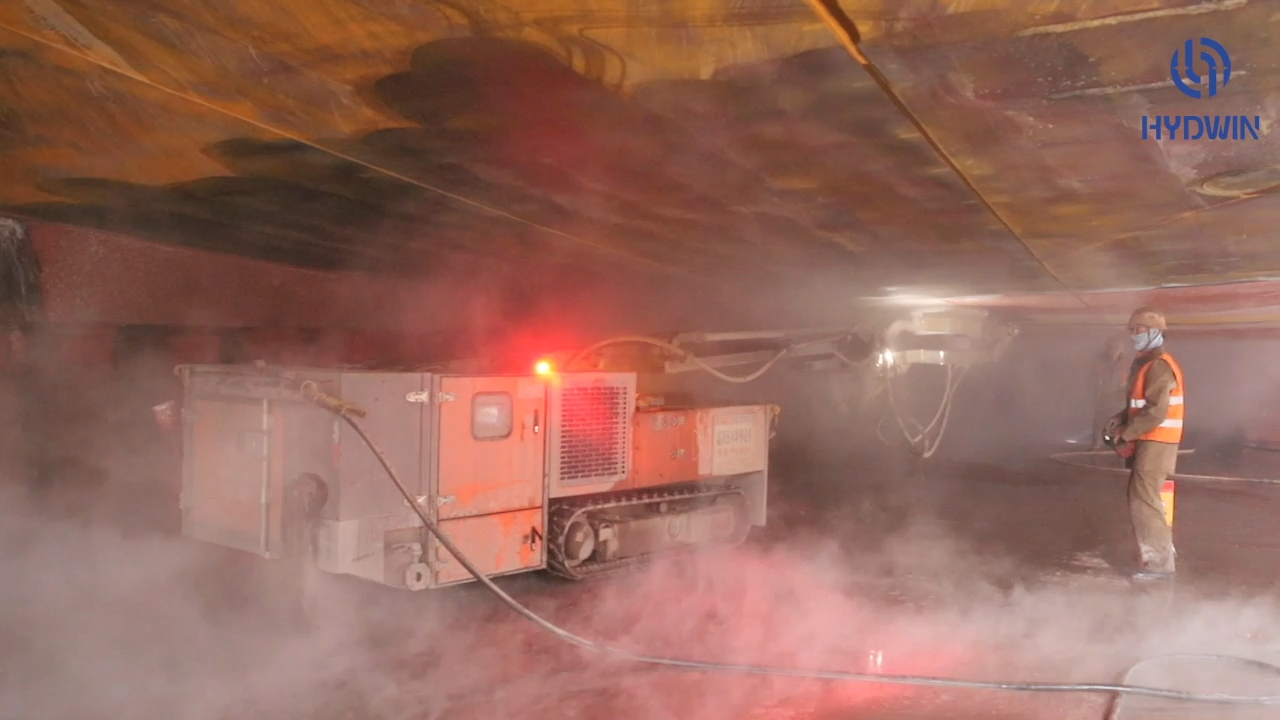

TCD 10 employs ultra-high-pressure water jet technology, featuring HYDWIN's proprietary AI-driven algorithms and advanced ultra-high-pressure components. It is engineered for optimal performance in complex areas such as ship sides, flat bottoms, and bilge keels. Operating at a maximum water pressure of 3000 bars and capable of reaching a working height of up to 10 meters, TCD 10 achieves a maximum derusting efficiency of 50 m²/h. This system conforms to the surface preparation standards of WJ-2 / Wa 2½ (very thorough cleaning, near-white metal grade), ensuring efficient ship hull cleaning and reliable surface preparation to meet demanding industry requirements.

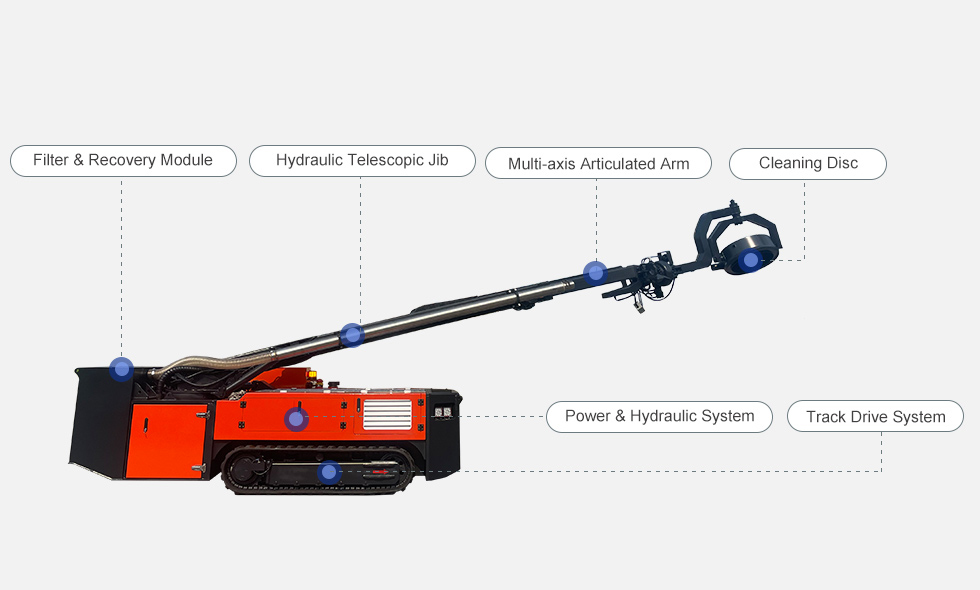

KEY FEATURES

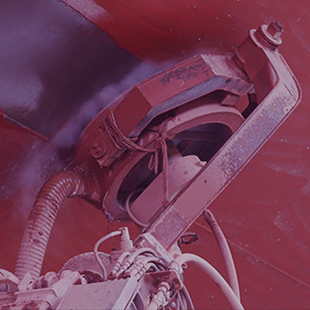

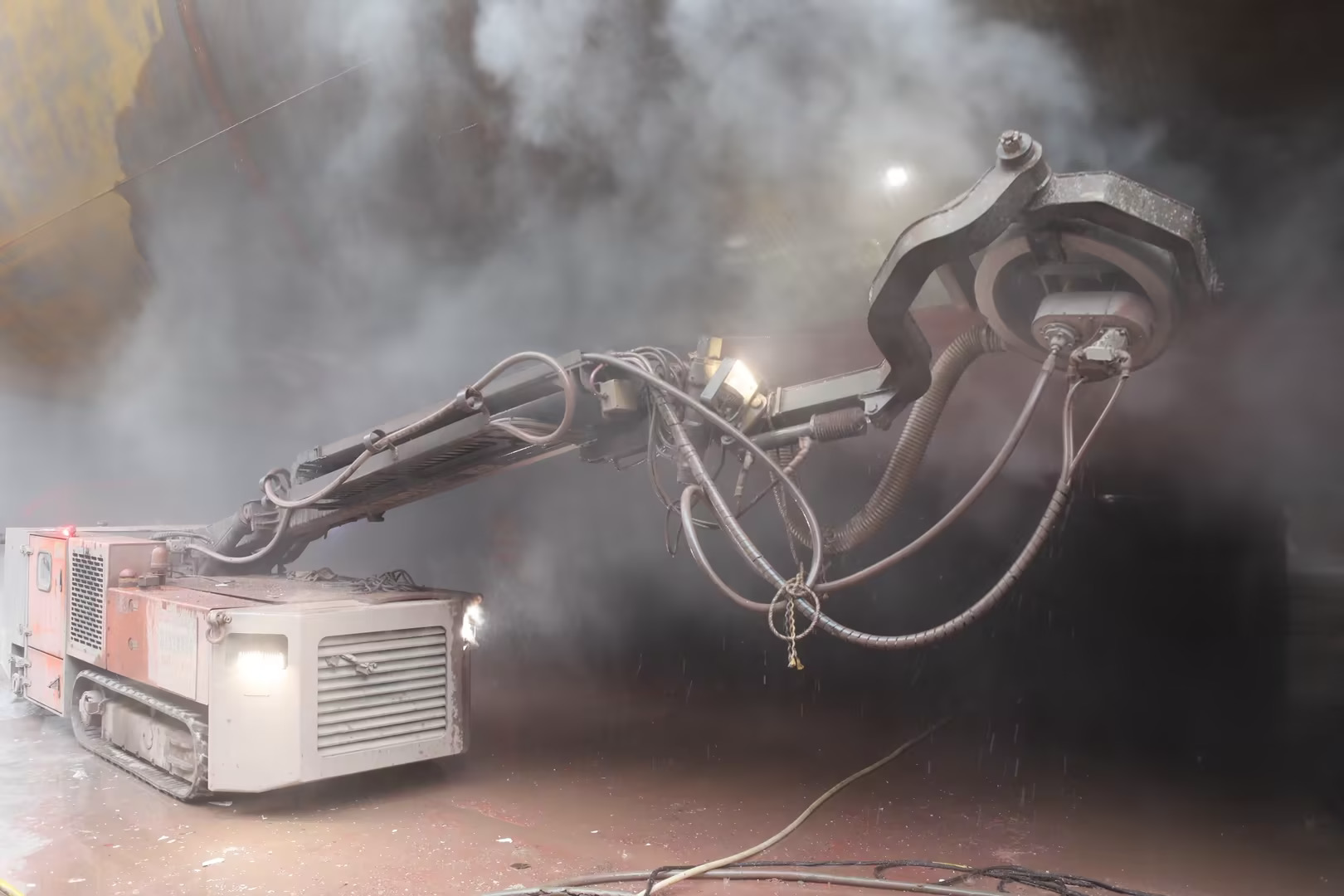

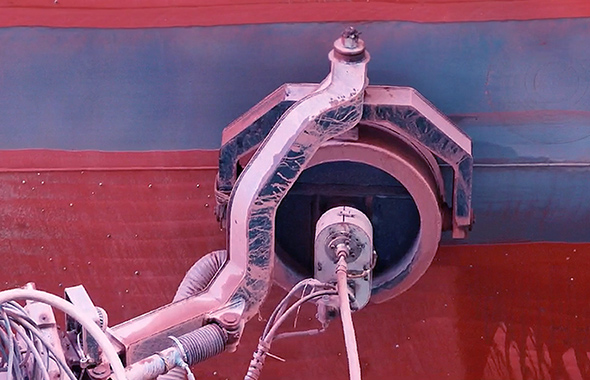

Cleaning Head

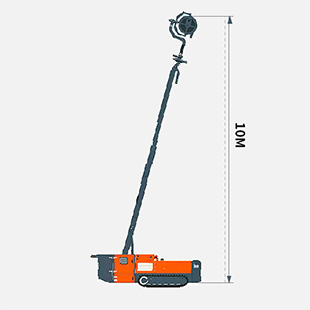

- Operates from 1.5 to 10 meters, with a 4.75-meter boom arm, ideal for low and narrow areas
- Optimized nozzle layout ensures uniform high-pressure water impact and efficient cleaning
- Reinforced, sealed, and dust-proof design with hydraulic drive reduces maintenance and ensures consistent performance

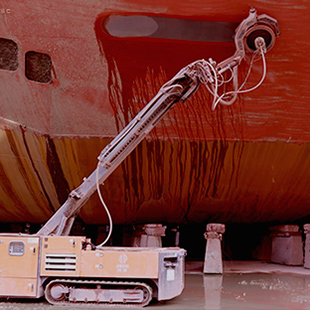

Intelligent Control System
- Real-time data visualization, remote control, safe and user-friendly
- Energy-saving and low-emission for high efficiency and cost reduction
- Powerful and flexible operation, brake energy recovery to reduce energy consumption and carbon footprint

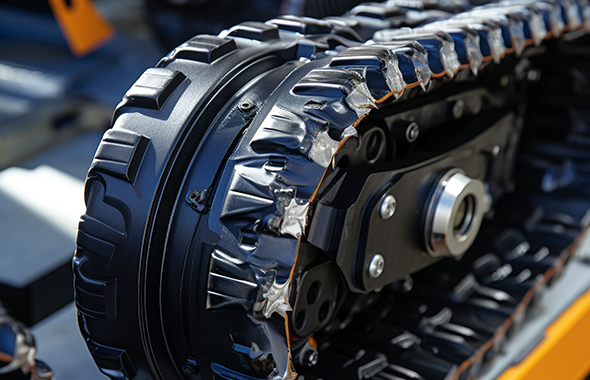

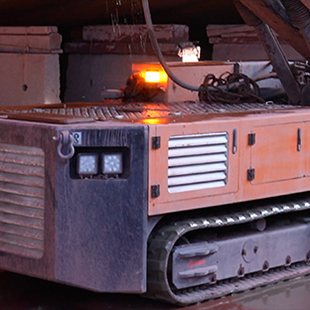

Crawler Track System
- Strong and stable performance at both low and constant speeds, easily handling bumps, potholes, and dock passageways
- Real-time monitoring of steering angle and speed for precise control and durability
- Precision system for excellent maneuverability between dock blocks, with differential steering to reduce track wear
CONFIGURATION PARAMETERS
| Items |
TCD 10 |
| Max. Height |
10 m |
| Max. Pressure |
3000 bar |
| Max. Flow |
50 l/min |
| Working Capacity |
up to 50 sqm/h |
| Engine Power |
44.7 kW@2800rpm, 4cyl |
| Engine Consumption |
≤6.0 l/h |
| Fuel Tank |
180 L |
| Weight |
6.5 T |
| Dimensions |
8211 mm x 1490 mm x 1260 mm |
| Cleanliness Standards | Wa 2.5/ WJ 2 |
