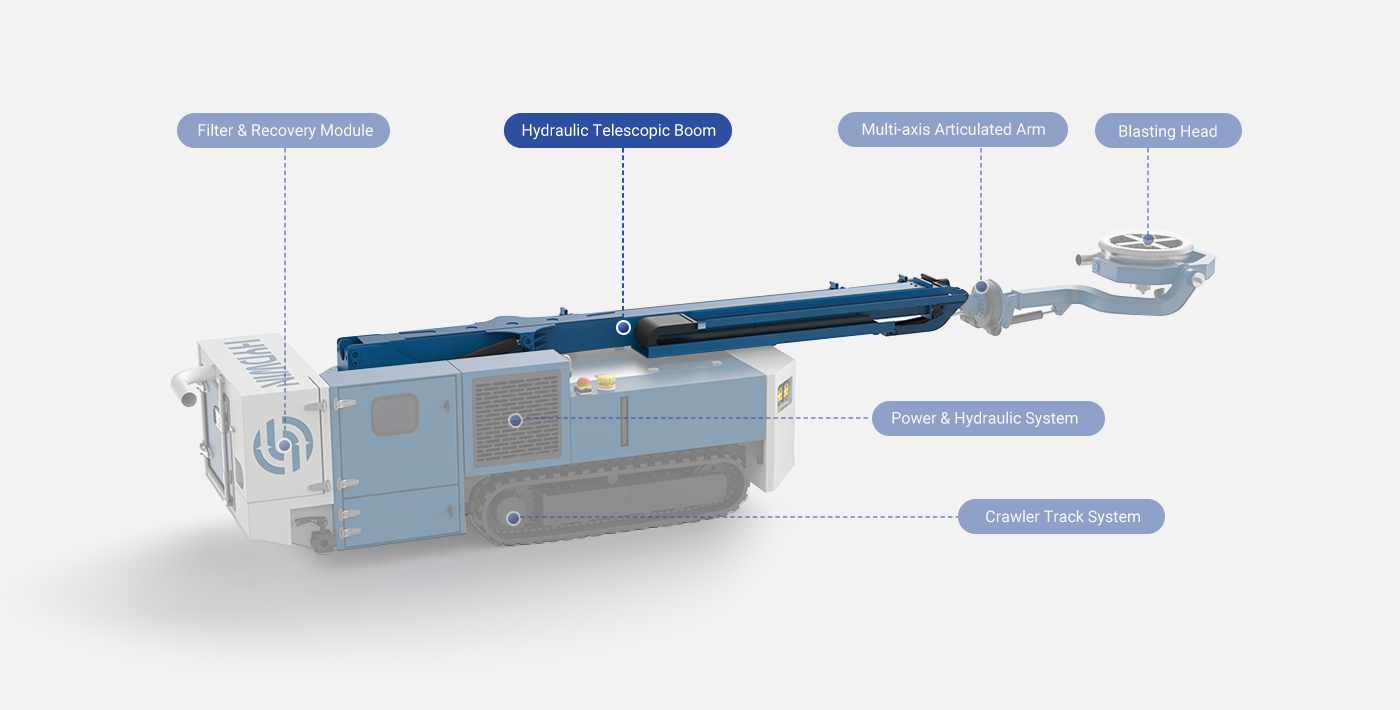

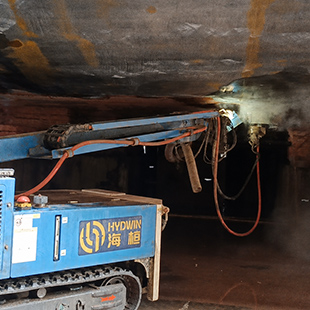

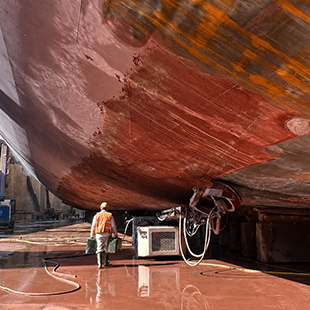

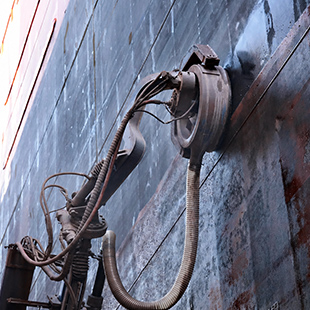

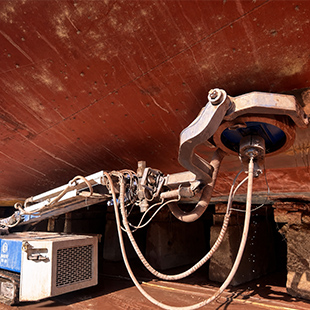

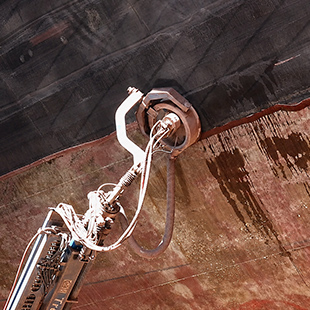

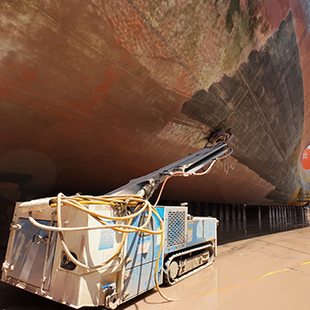

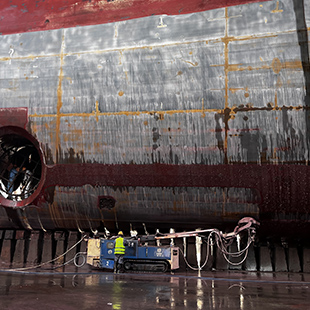

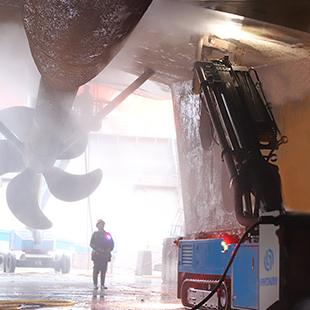

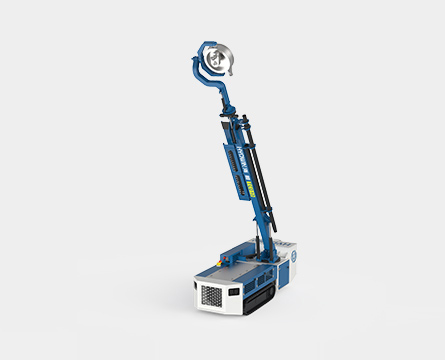

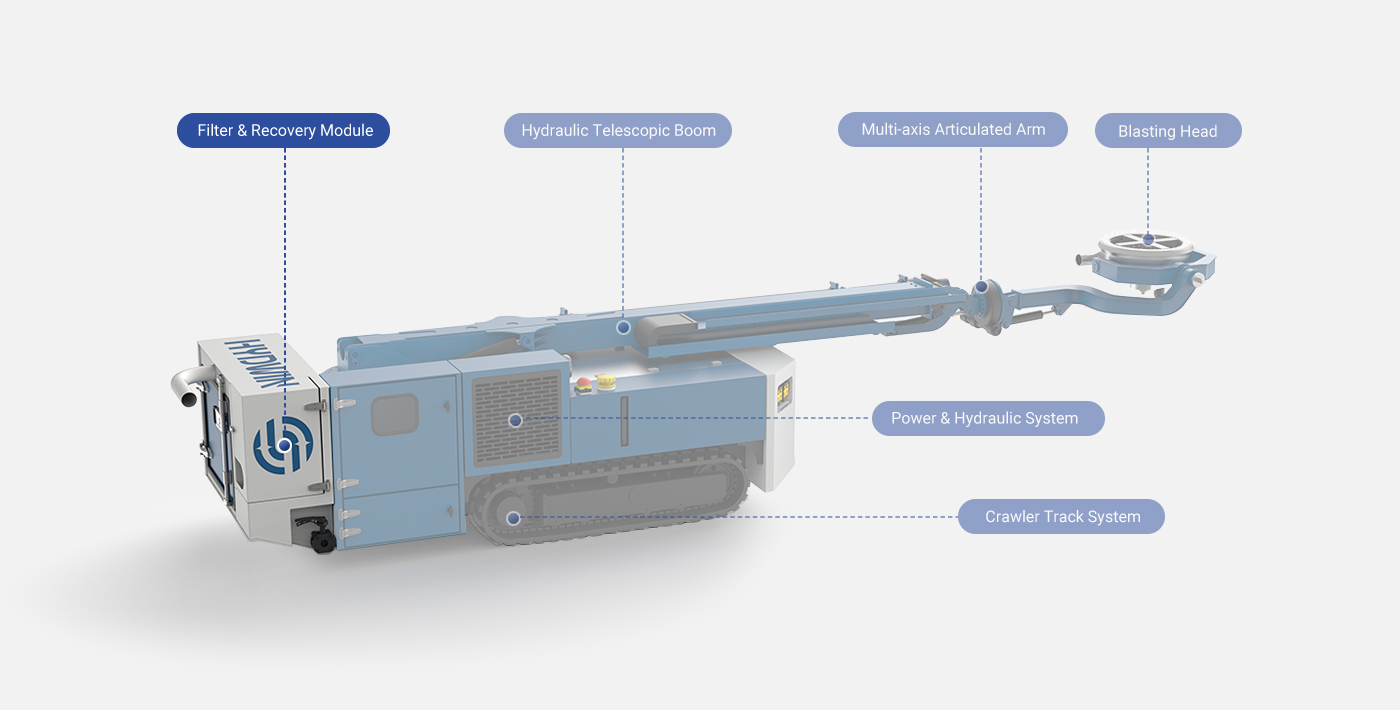

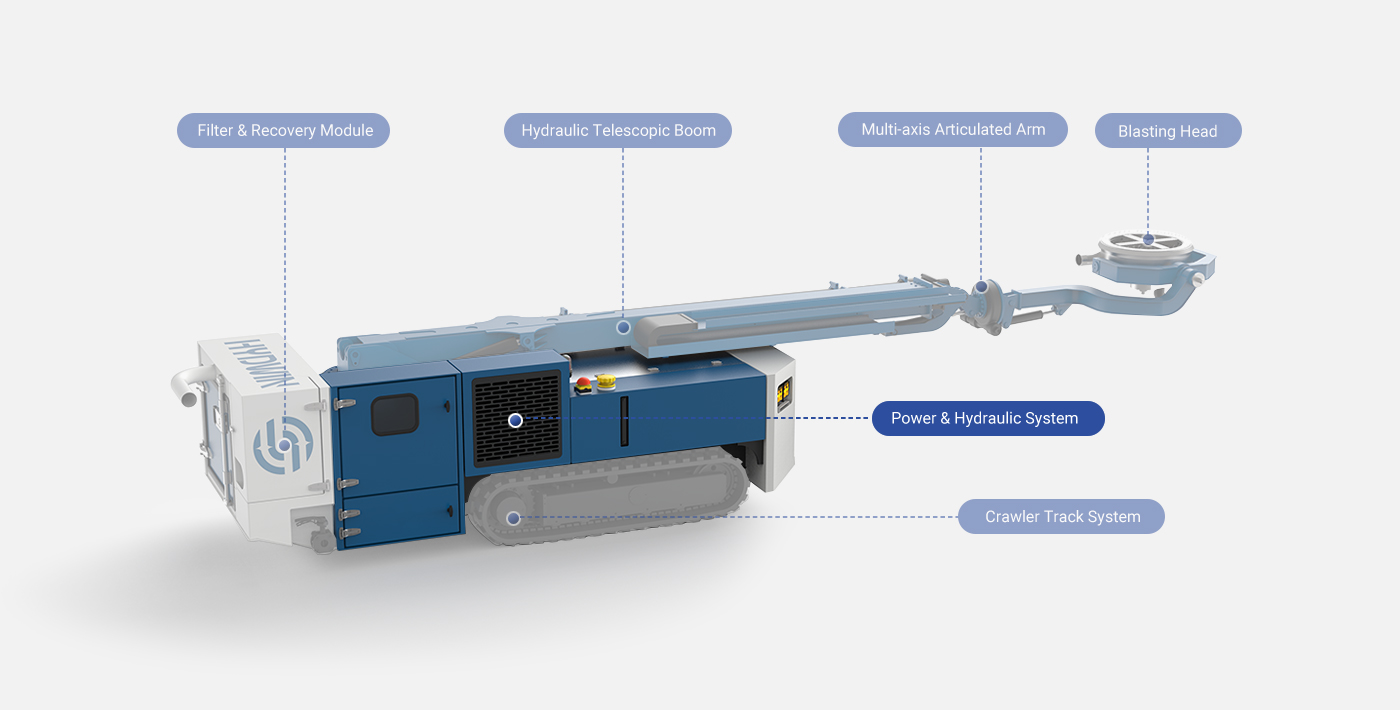

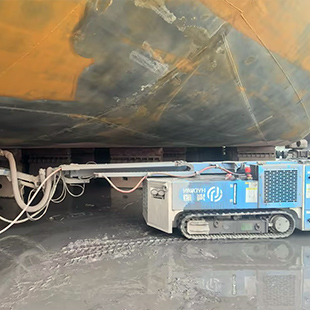

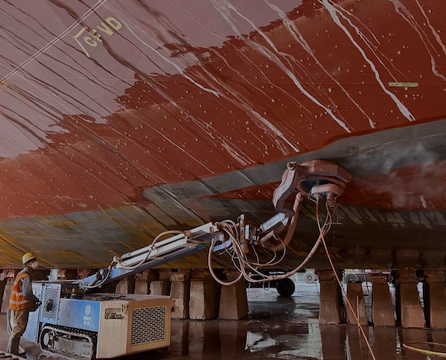

Engineered for optimal performance in low and curved areas such as flat bottoms, bilge keels, and bow and stern areas, the Treatment

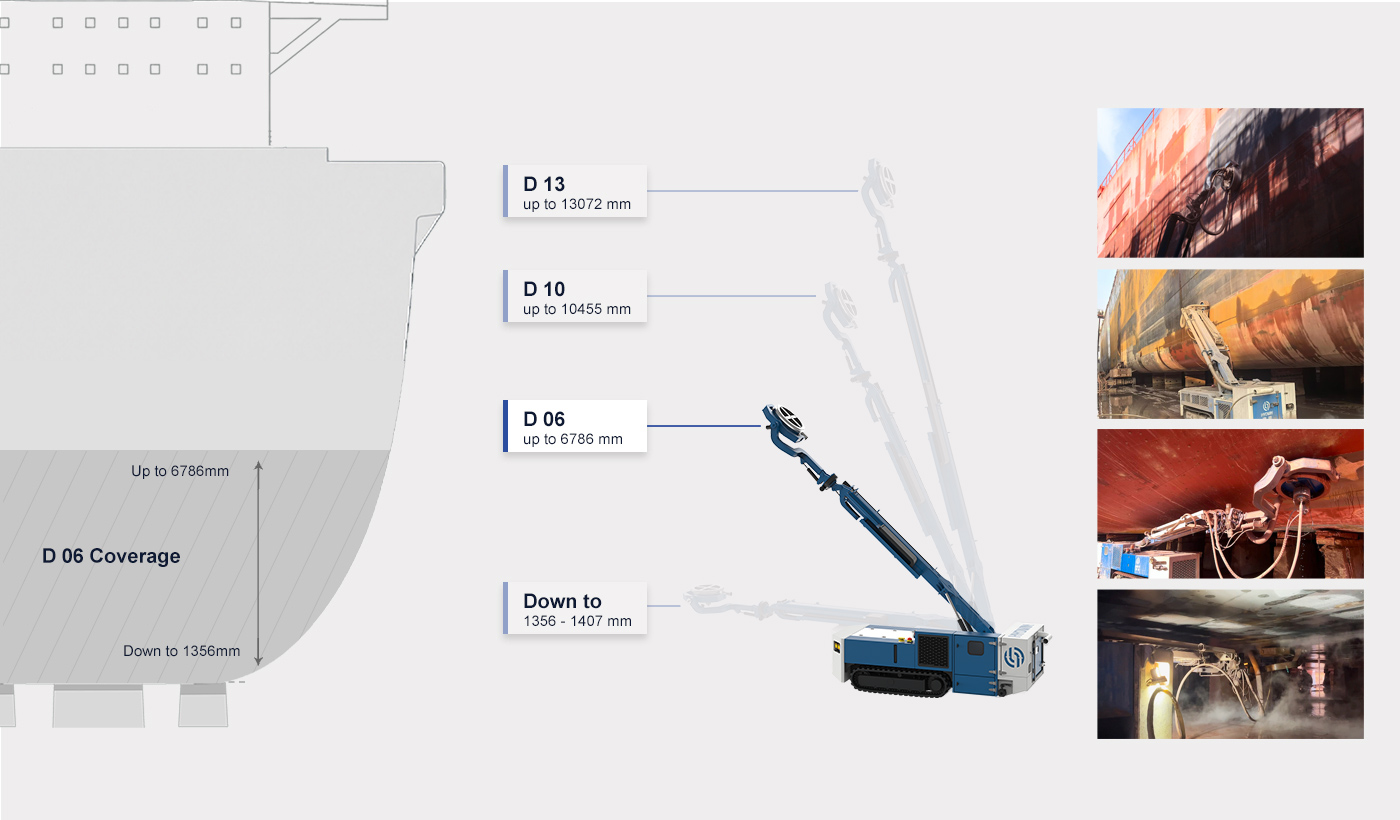

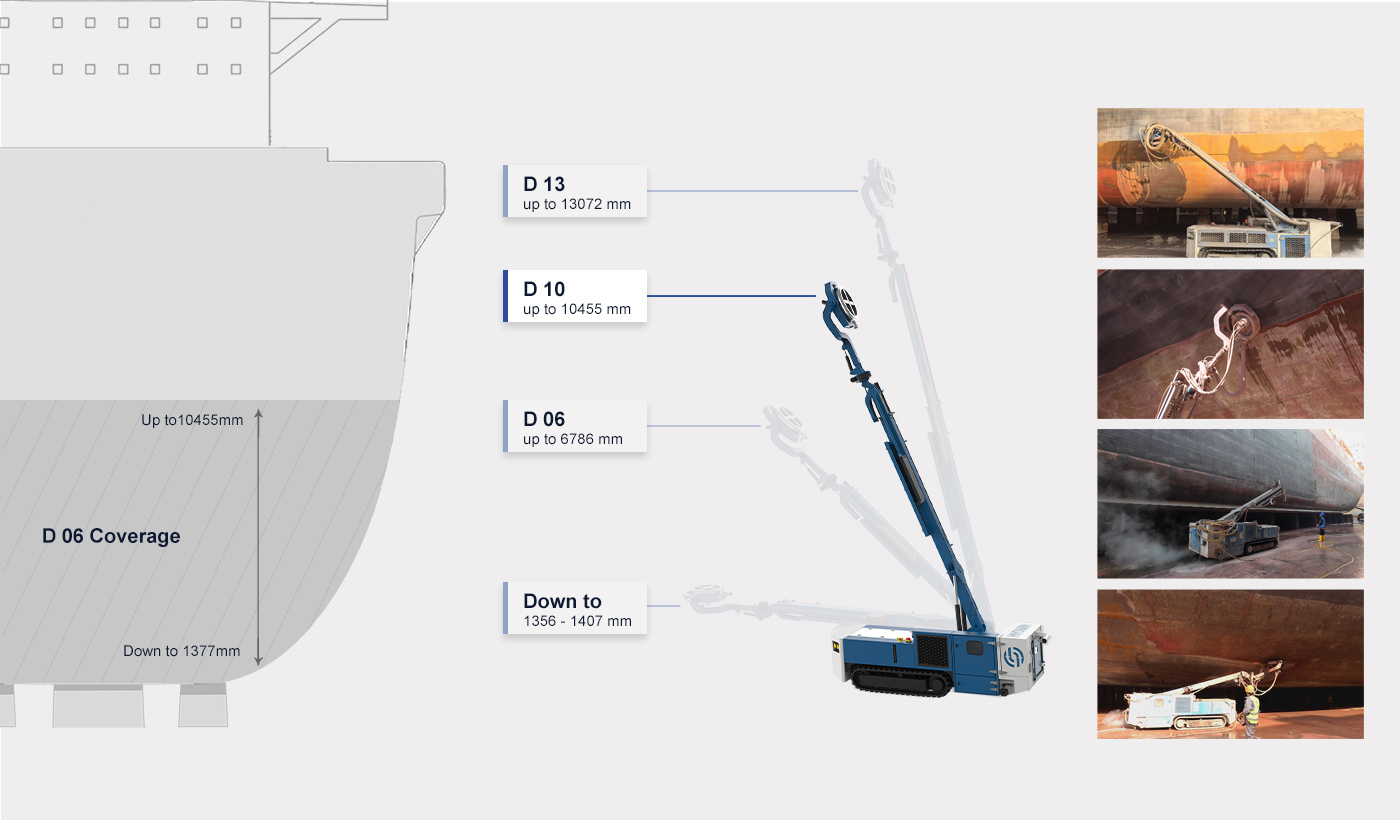

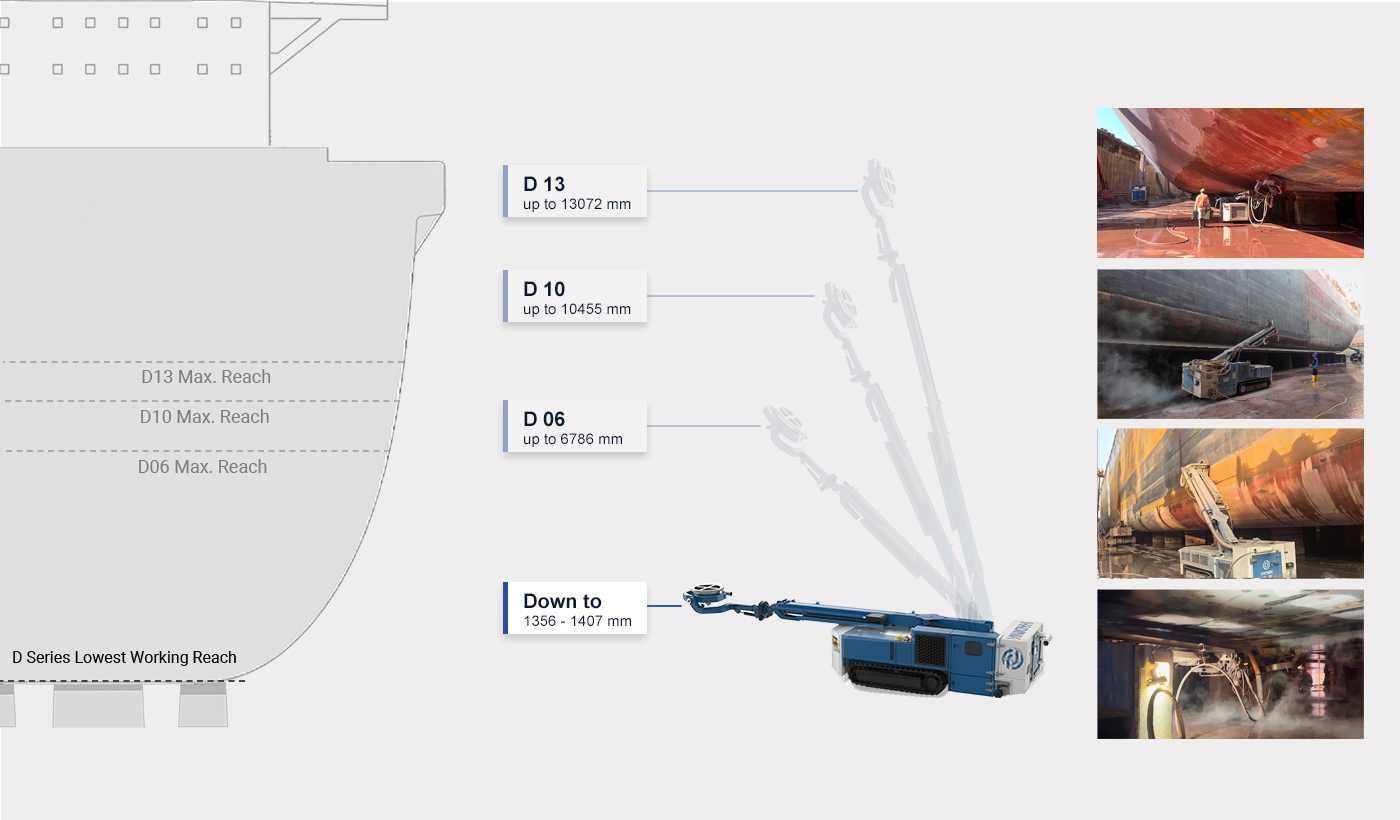

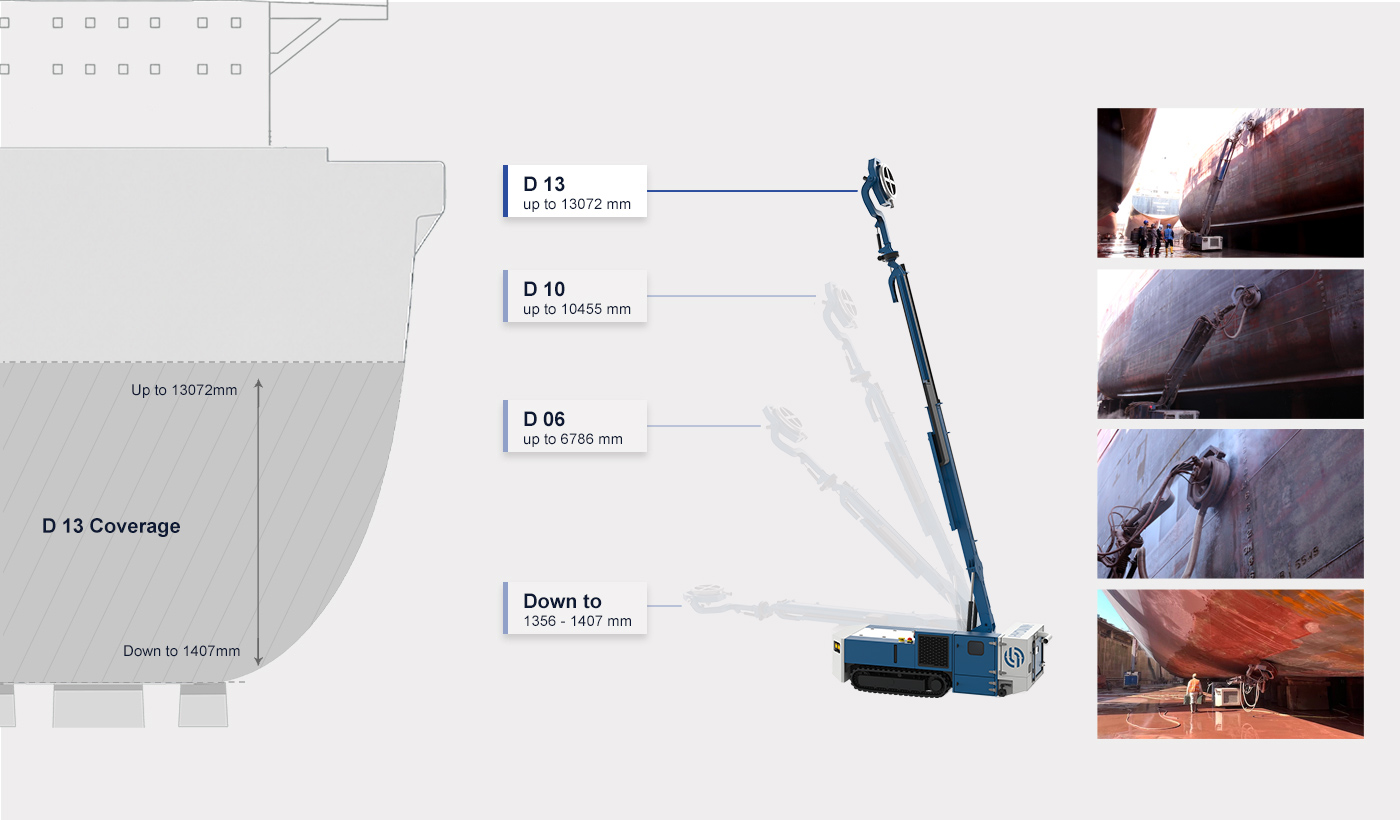

Carrier D Series operates at a maximum water pressure of 3000 bar with a working height range from 1.3 to 13 meters.
Achieving a maximum efficiency of 50 m²/h, the D Series conforms to the Cleanliness Standard of WJ-2/Wa 2½, ensuring efficient ship hull cleaning
and reliable surface preparation.

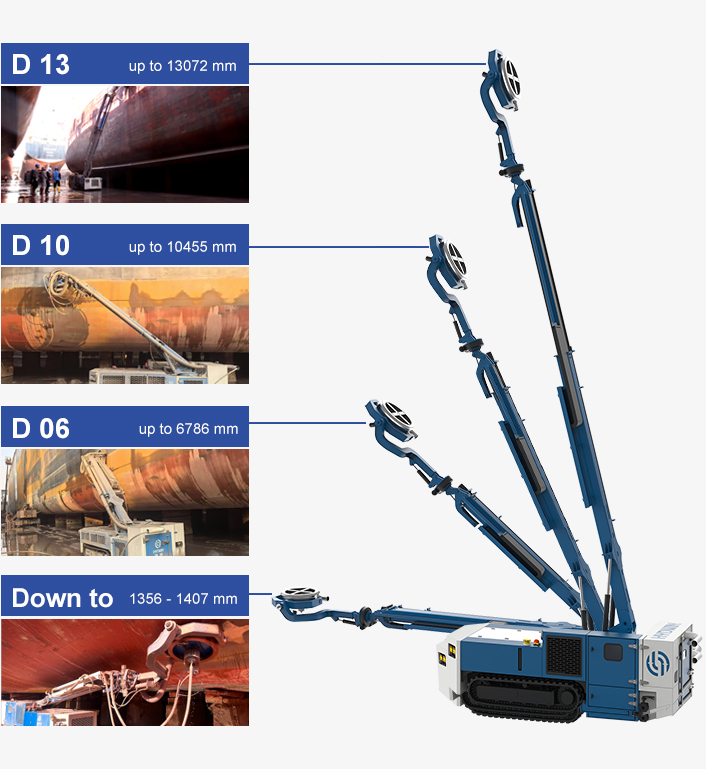

| Model | Dimension | Engine Power | Working Height | Weight | Water Pressure | Efficiency | Flow Rate |
|---|---|---|---|---|---|---|---|

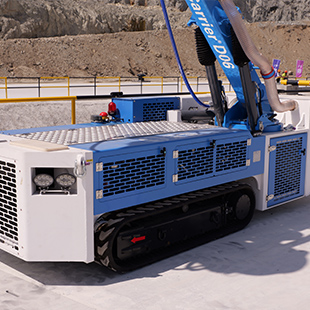

| D 06 | 7318 x 1560 x 1356 (mm) |

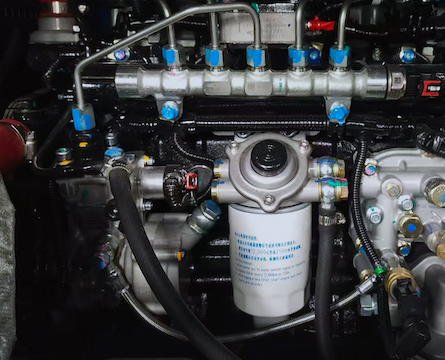

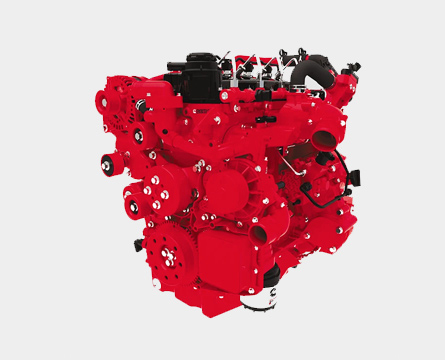

EU Stage III /V Diesel Engine 36.8 kW @2400 rpm 44.7 kW @2800 rpm 50.0 kW @2400 rpm 54.0 kW @2600 rpm |
≤ 6.0 m | ≈ 6.5 T | ≤ 3000 bar | ≤ 50 m²/h | ≤ 50 l/min |
| D 10 | 8211 x 1560 x 1377 (mm) |
EU Stage III /V Diesel Engine 36.8 kW @2400 rpm 44.7 kW @2800 rpm 50.0 kW @2400 rpm 54.0 kW @2600 rpm |
≤ 10 m | ≈ 6.6 T | ≤ 3000 bar | ≤ 50 m²/h | ≤ 50 l/min |
| D 13 | 8687 x 1560 x 1407 (mm) |
EU Stage III /V Diesel Engine 36.8 kW @2400 rpm 44.7 kW @2800 rpm 50.0 kW @2400 rpm 54.0 kW @2600 rpm |
≤ 13 m | ≈ 6.8 T | ≤ 3000 bar | ≤ 50 m²/h | ≤ 50 l/min |
