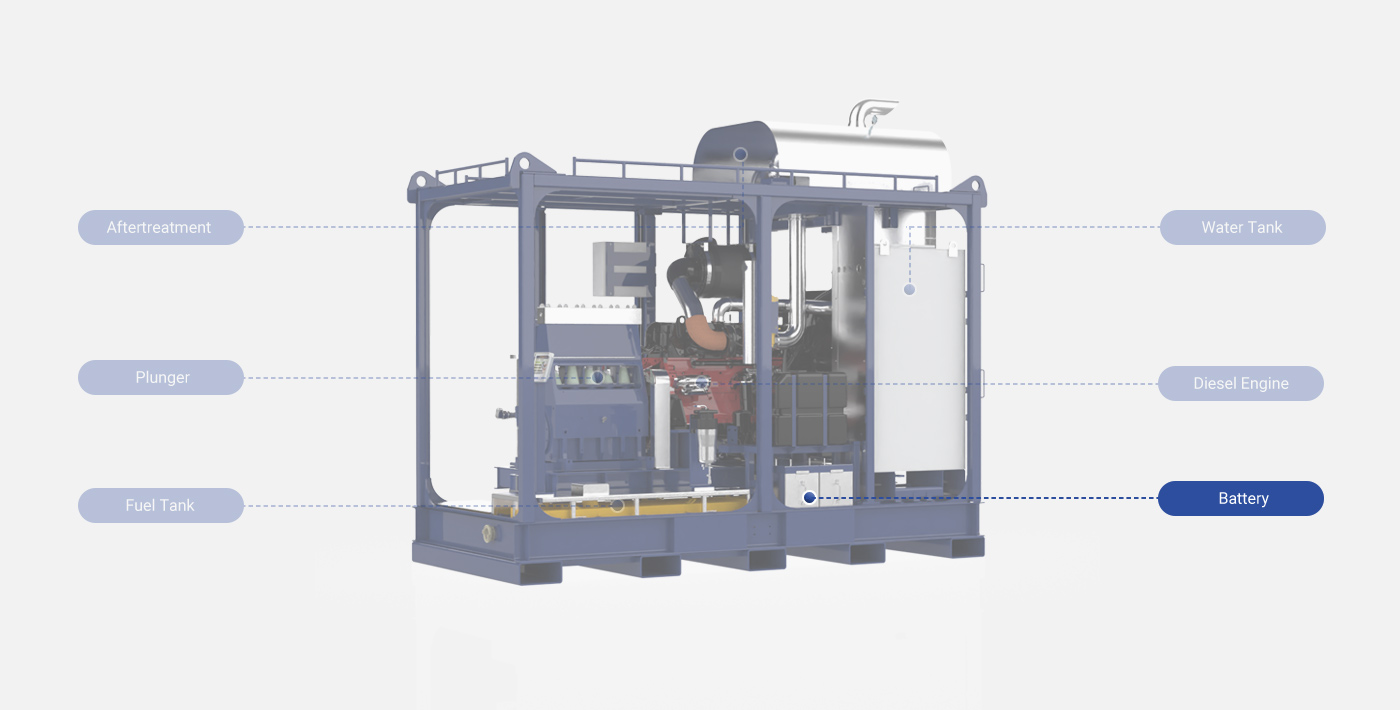

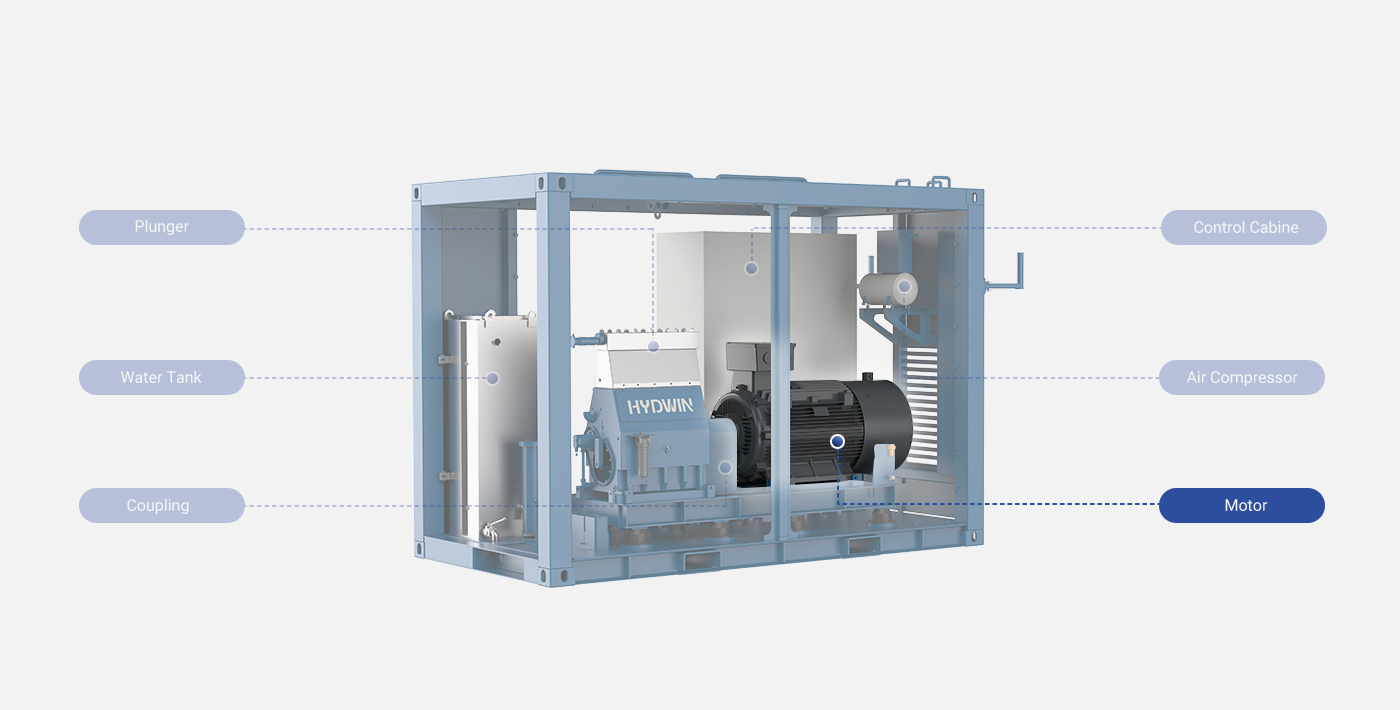

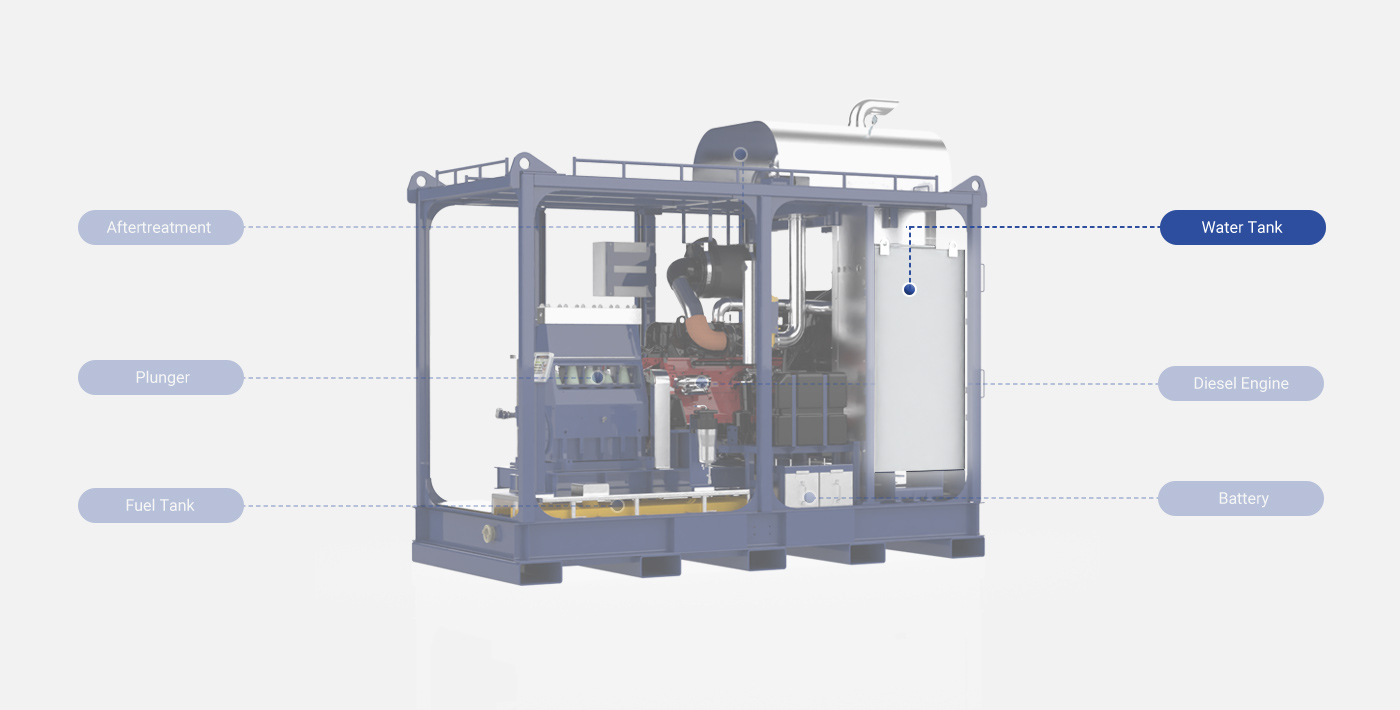

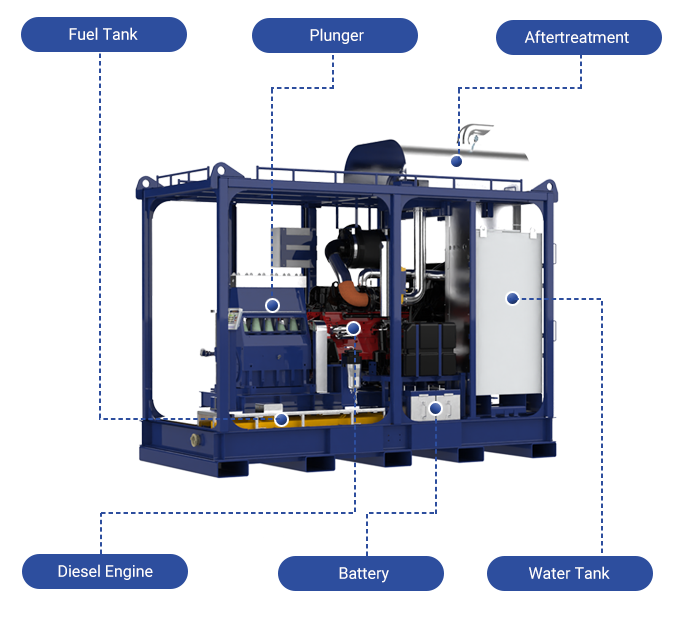

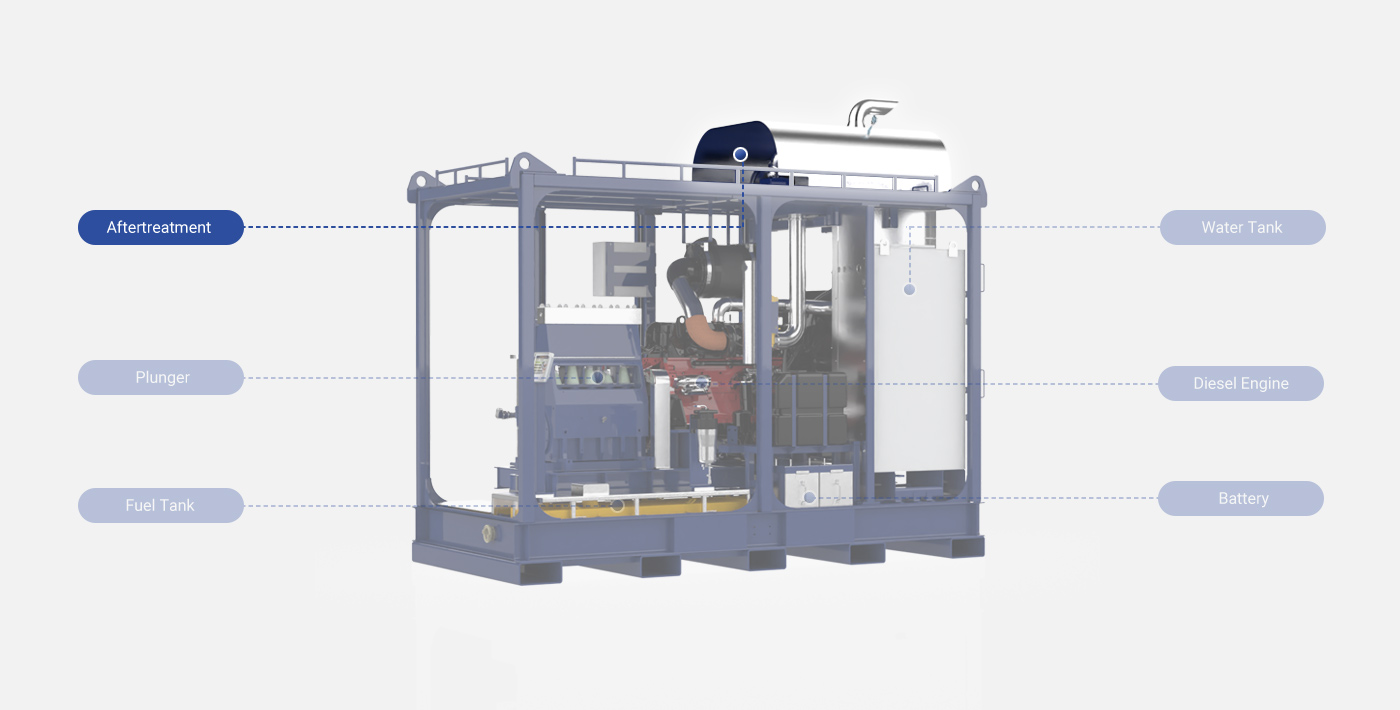

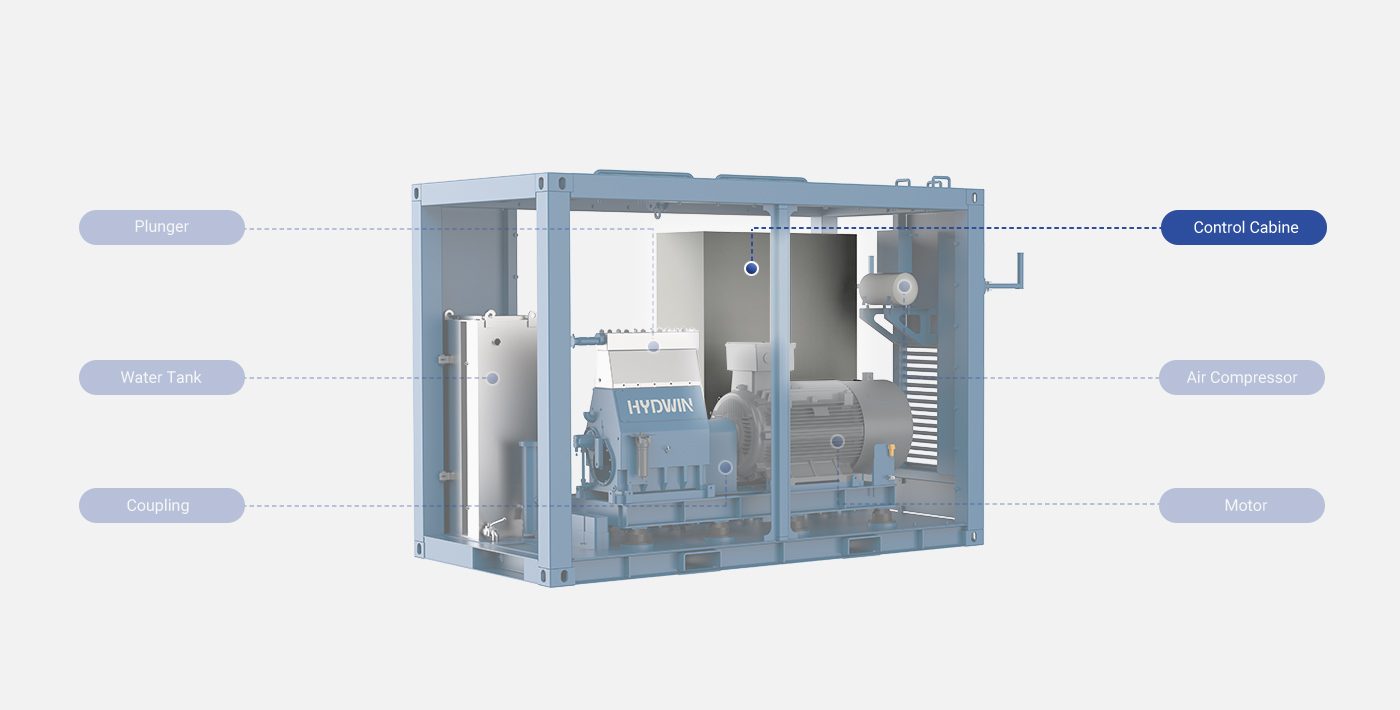

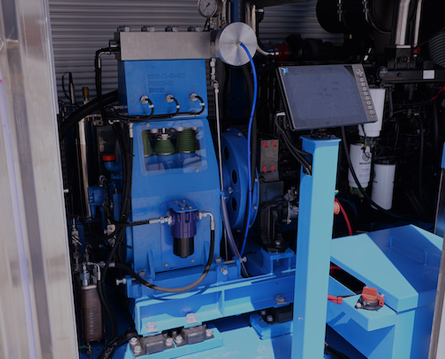

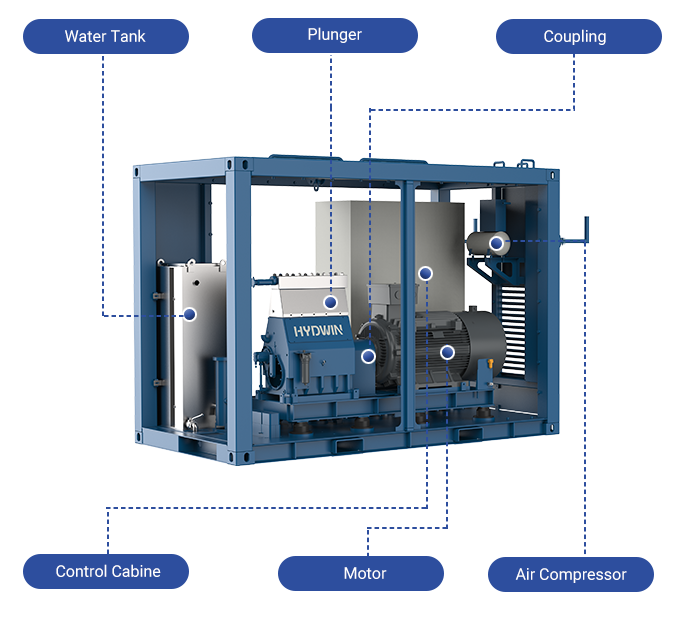

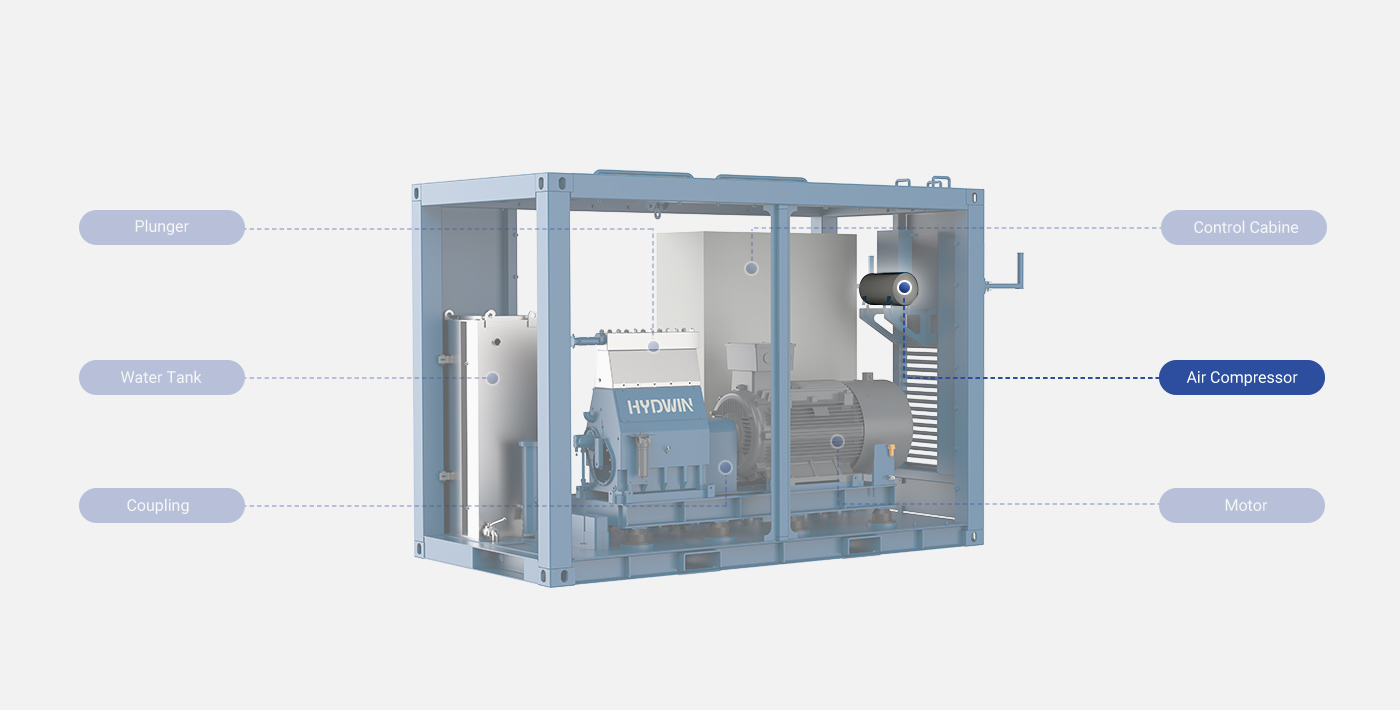

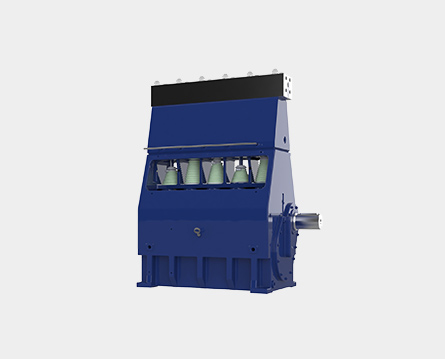

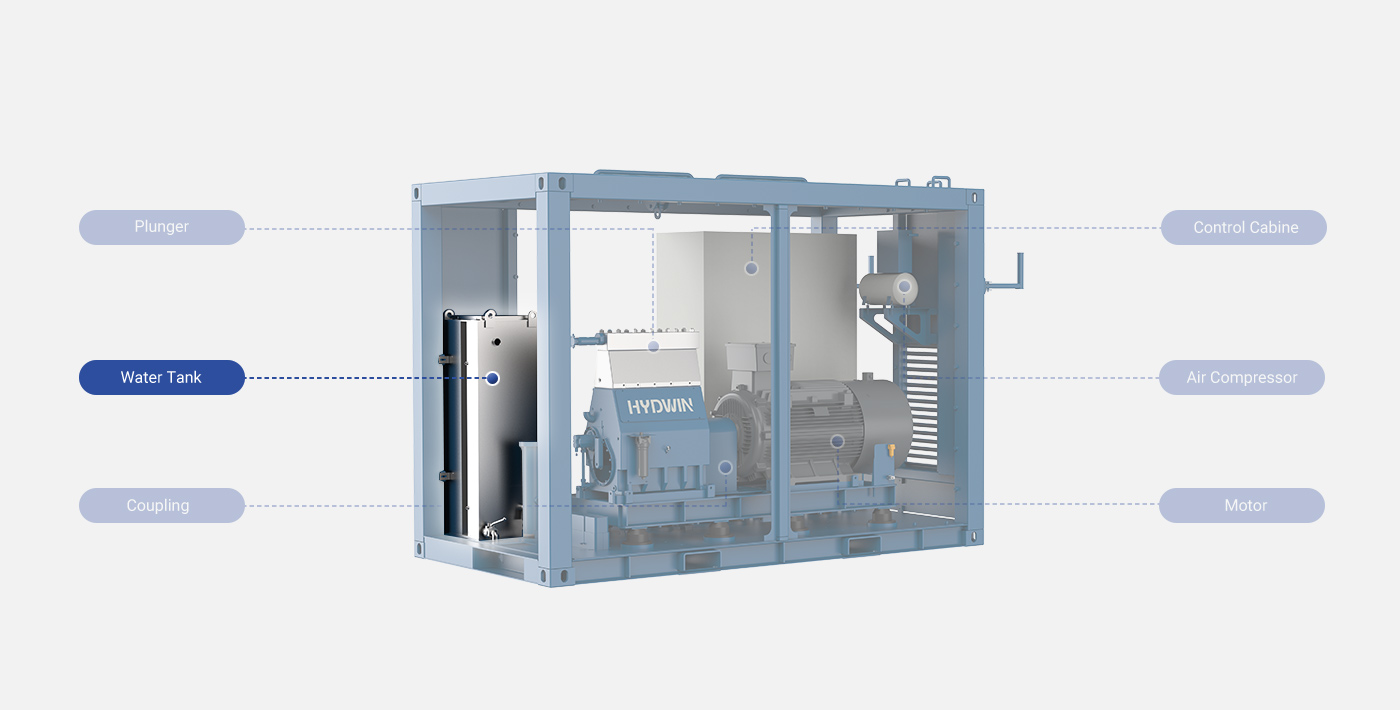

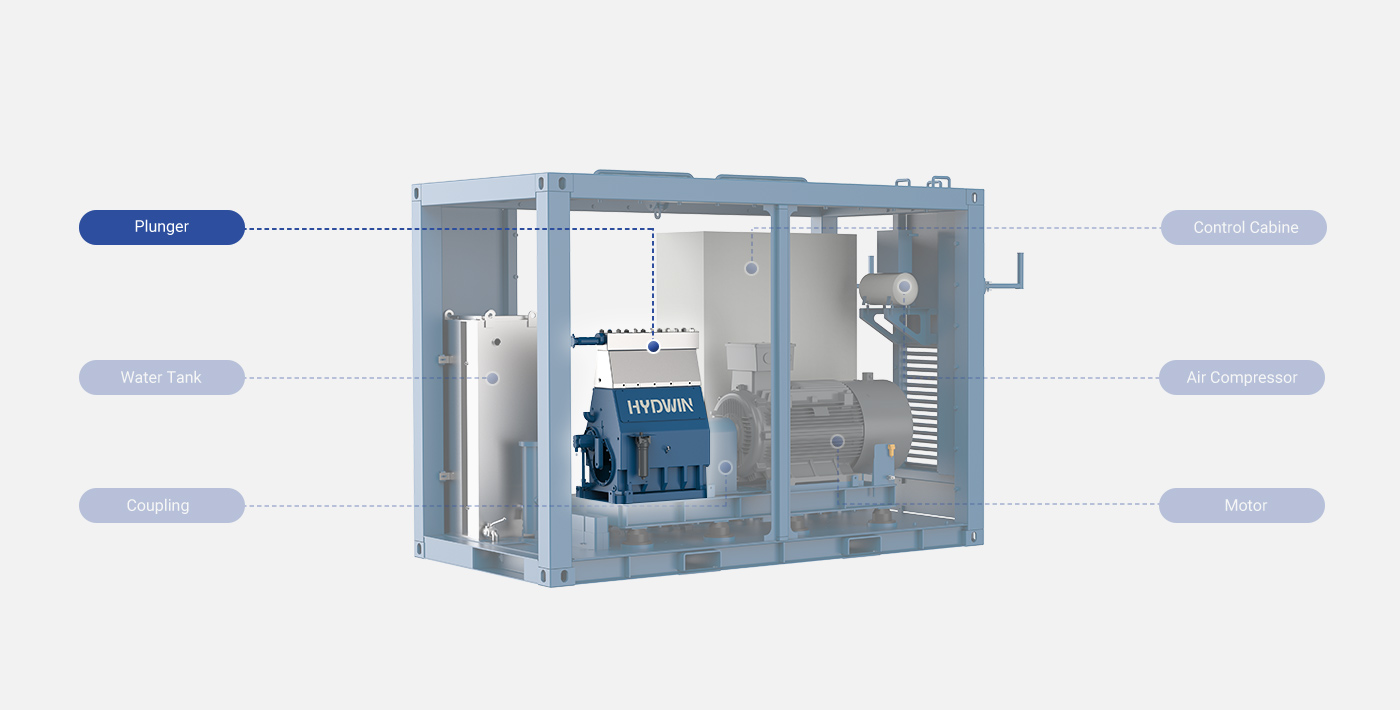

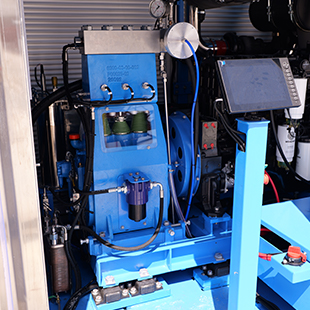

The ultra-high pressure pump, Treatment Carrier P, features proprietary core components designed for continuous heavy-duty
operation and supports dynamic pressure adjustment across a range of 50-300 Mpa . Engineered with an optimized flow path
and gap-seal design that ensures high efficiency and minimal cavitation risk.
| Model | Size | Weight | Drive System | Motor/Engine Manufacturer |
Pump Type | Pressure | Flow |
|---|---|---|---|---|---|---|---|

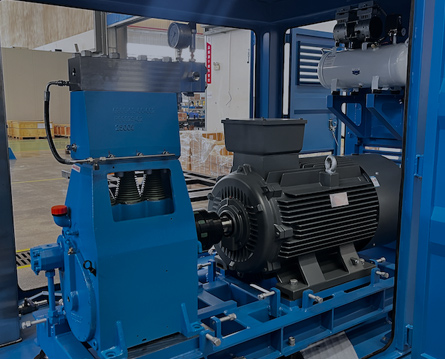

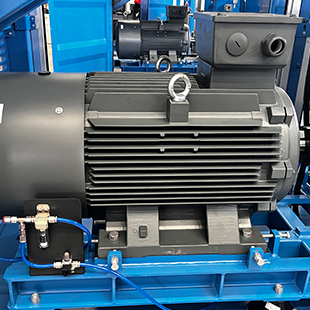

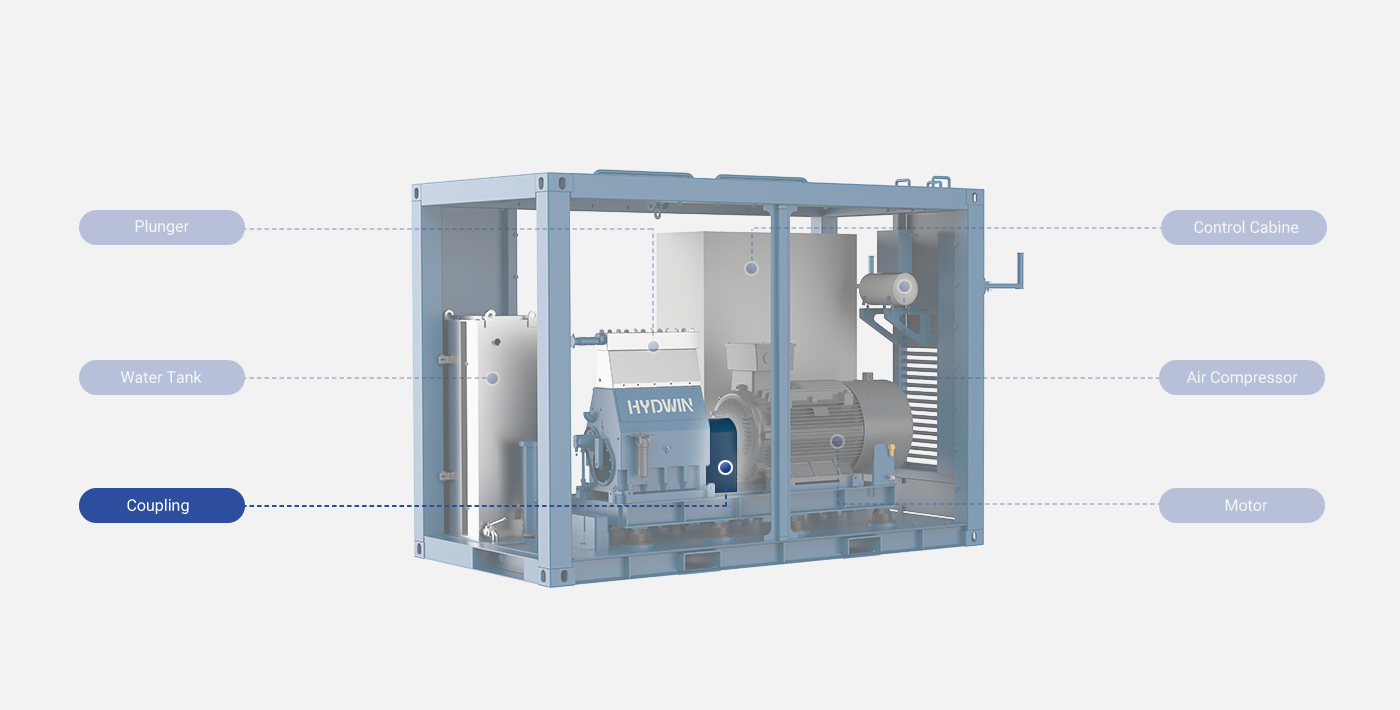

| P 200E | 2990 x 1850 x 2200 (mm) |
4.9T | 380 V/50 HZ Electric Drive 200kW@1500 rpm |

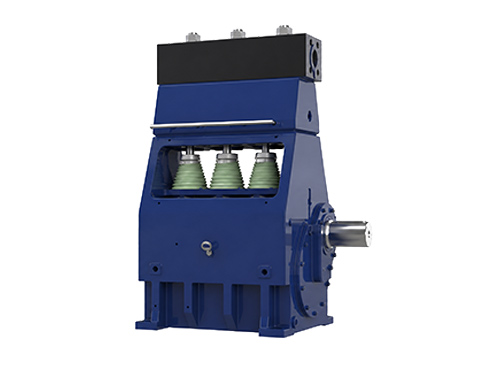

Cummins | Triplex Plunger | ≤ 2800 bar | ≤40 l/min |

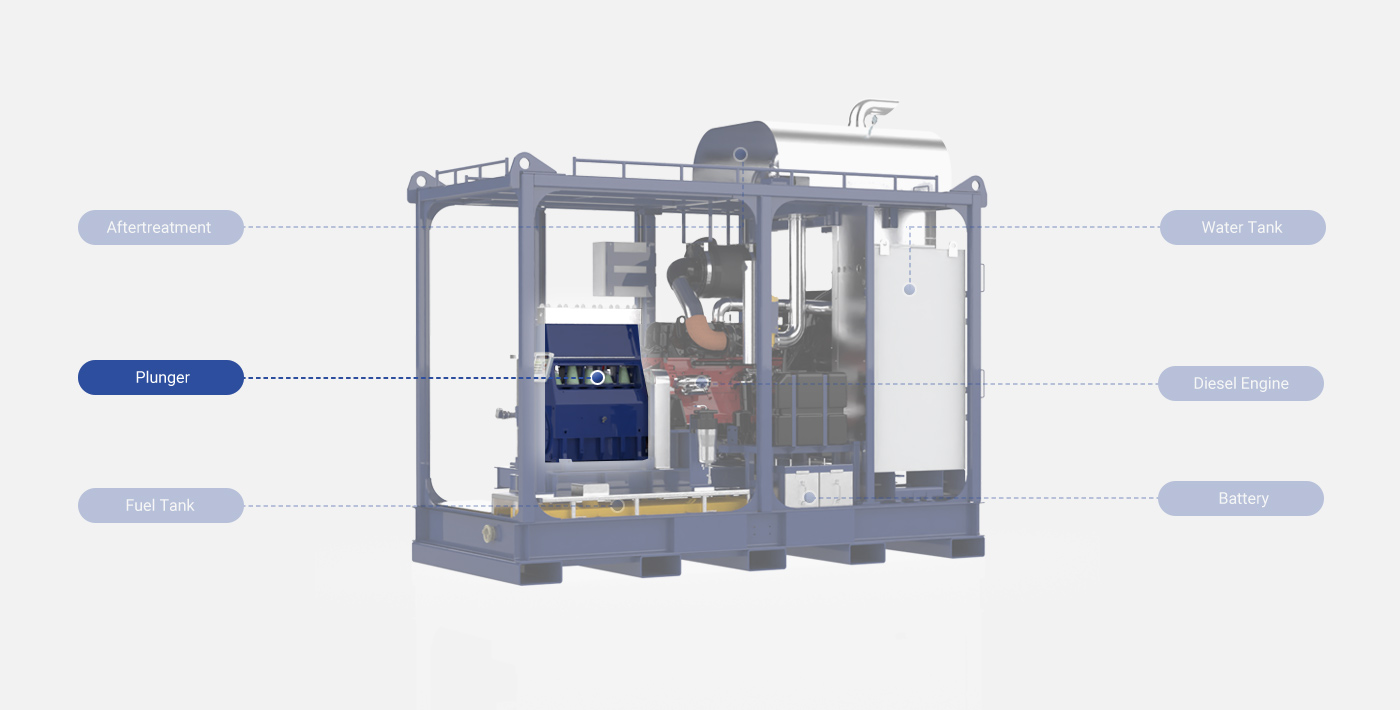

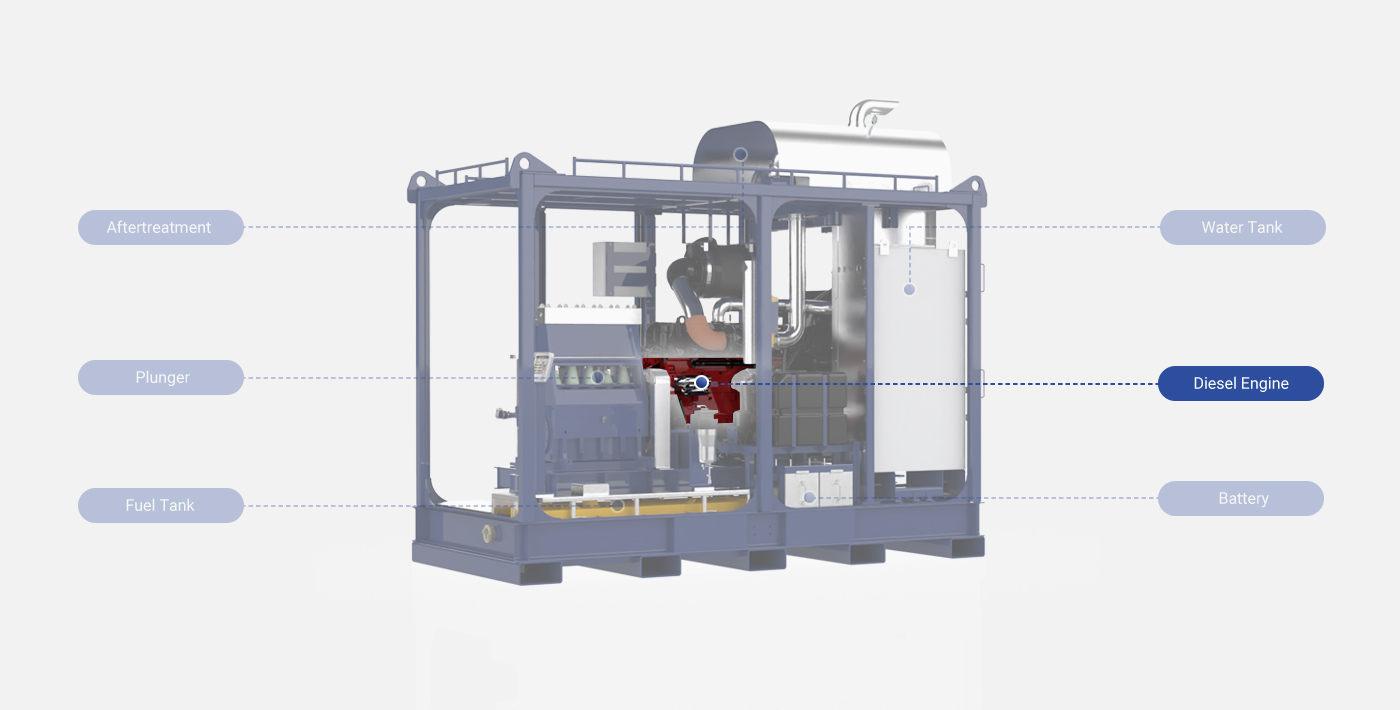

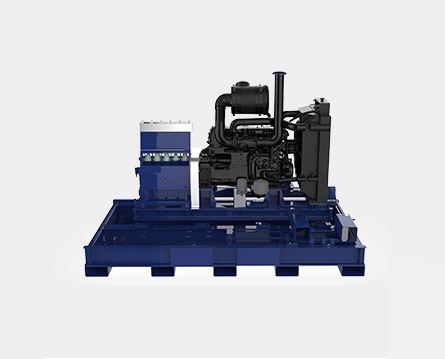

| P 200D | 3600 x 1950 x 2440 (mm) |

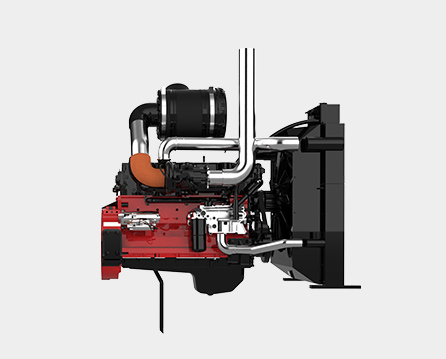

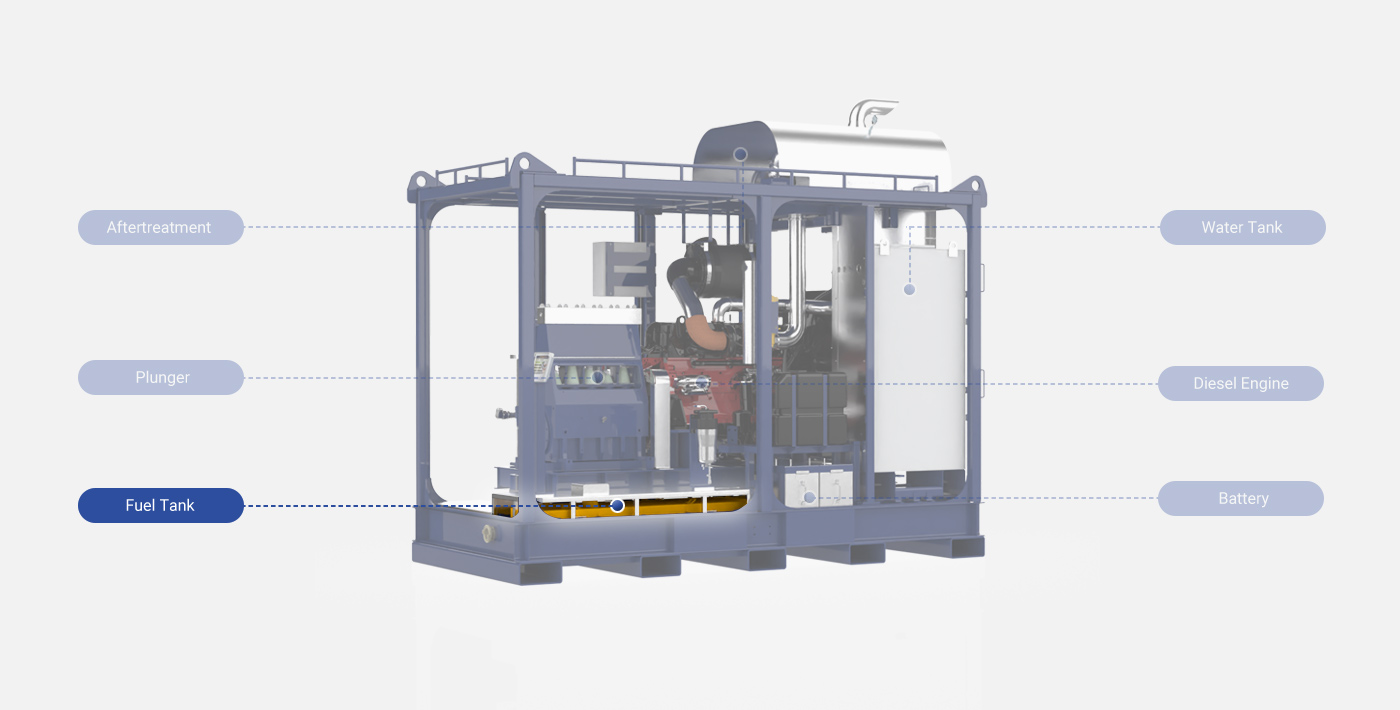

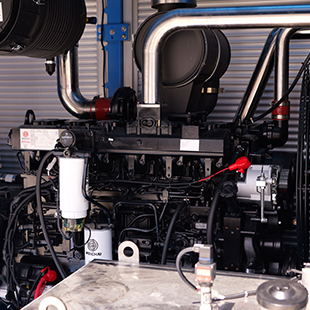

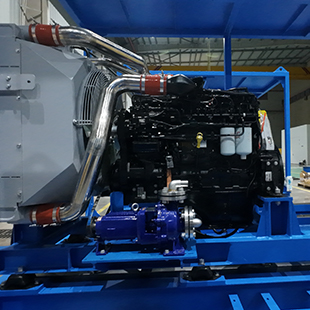

4.5T | EU Stage III Diesel Engine 264 kW@1800 rpm |
Siemens | Triplex Plunger | ≤ 1800 bar | S 76 l/min |
| P 300E | 3600 x 1950 x2670 (mm) |

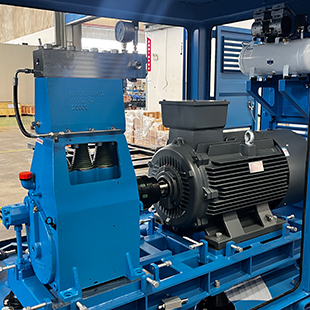

6.9T | 380 V/60 HZ Electric Drive 315 kW@1800 rpm |
Siemens | Quintuplex Plunger | ≤ 3000 bar | S 51 l/min |
| P 300D | 3950 x 1950 x2440 (mm) |
6.7T | EU Stage III Diesel Engine 358 kW@1800 rpm |
Cummins | Quintuplex Plunger | ≤ 3000 bar | ≤40 l/min |
