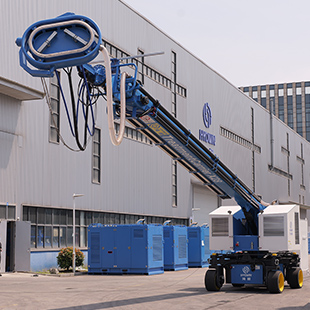

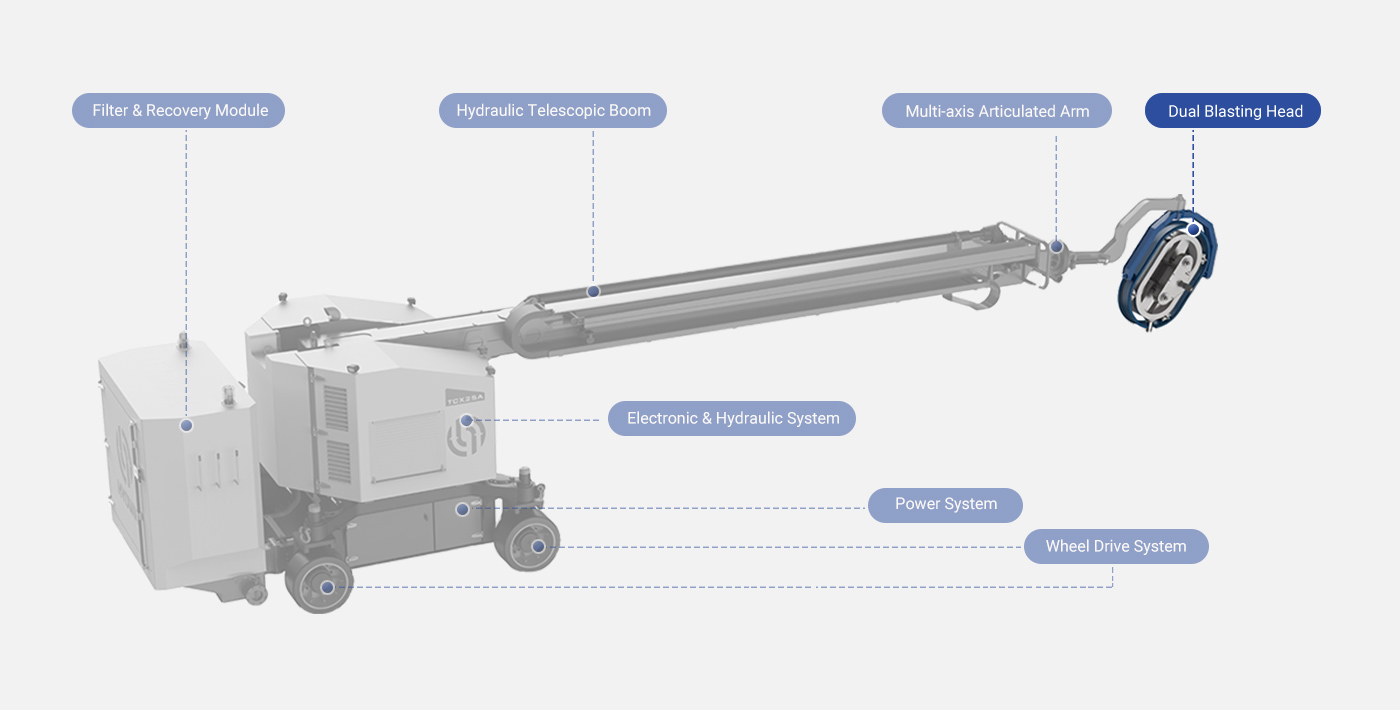

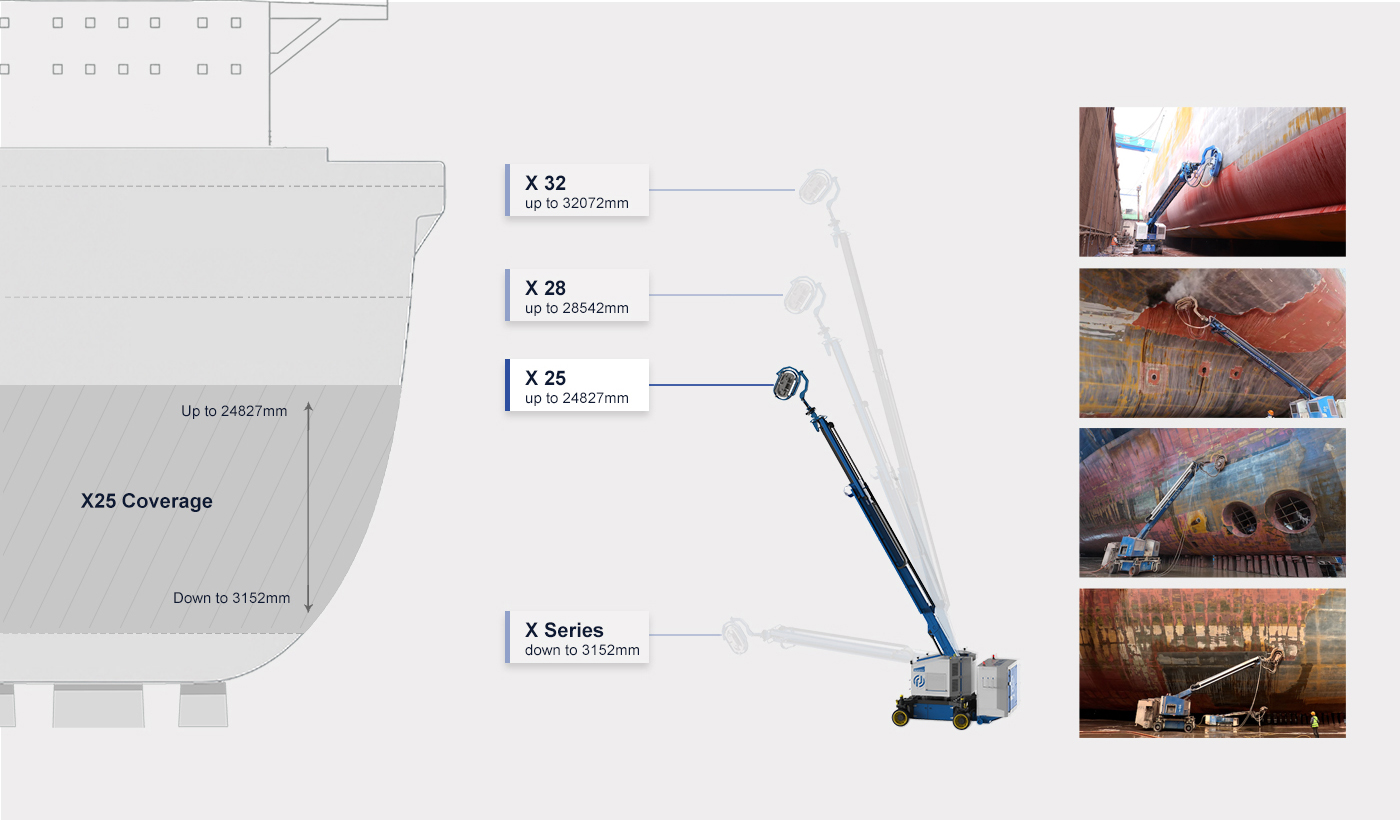

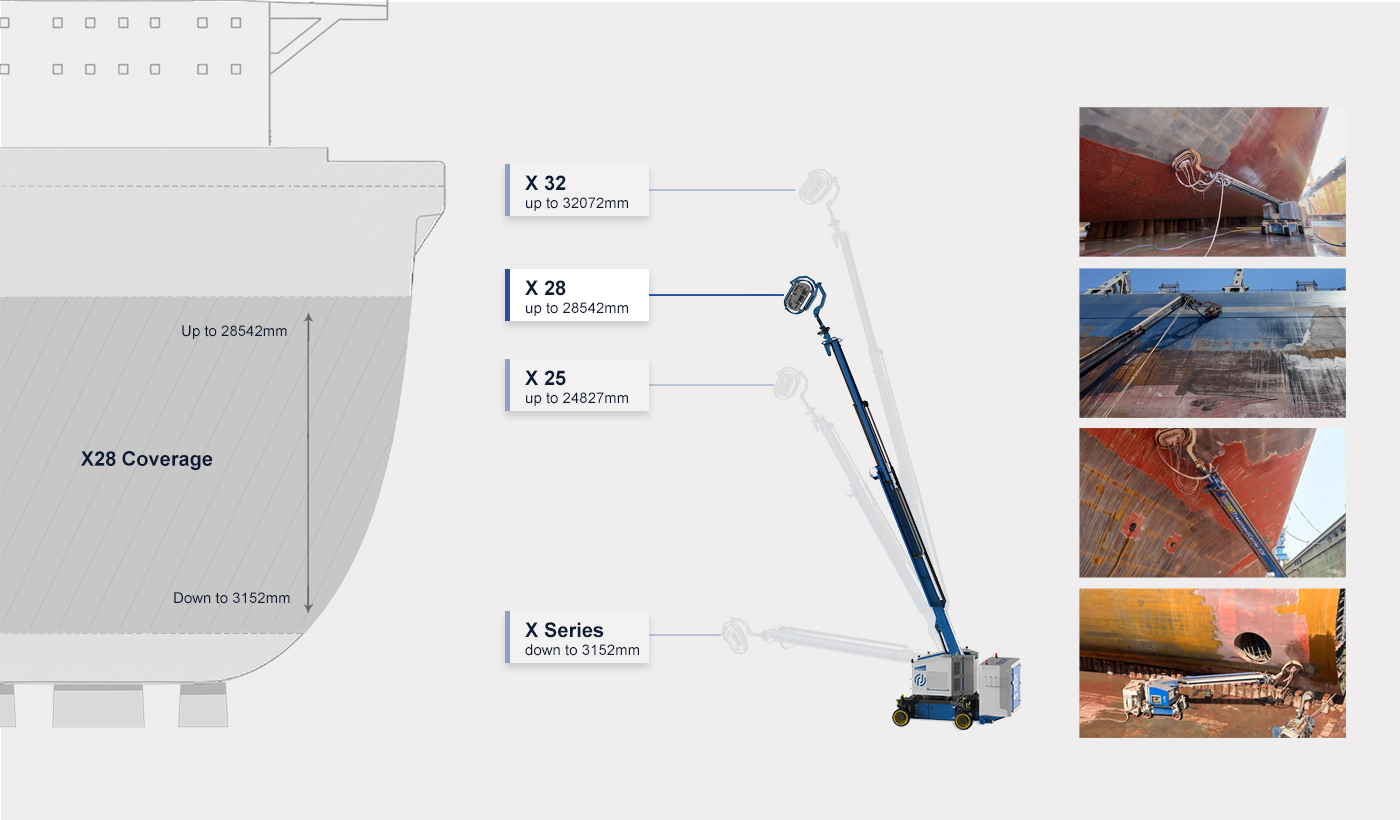

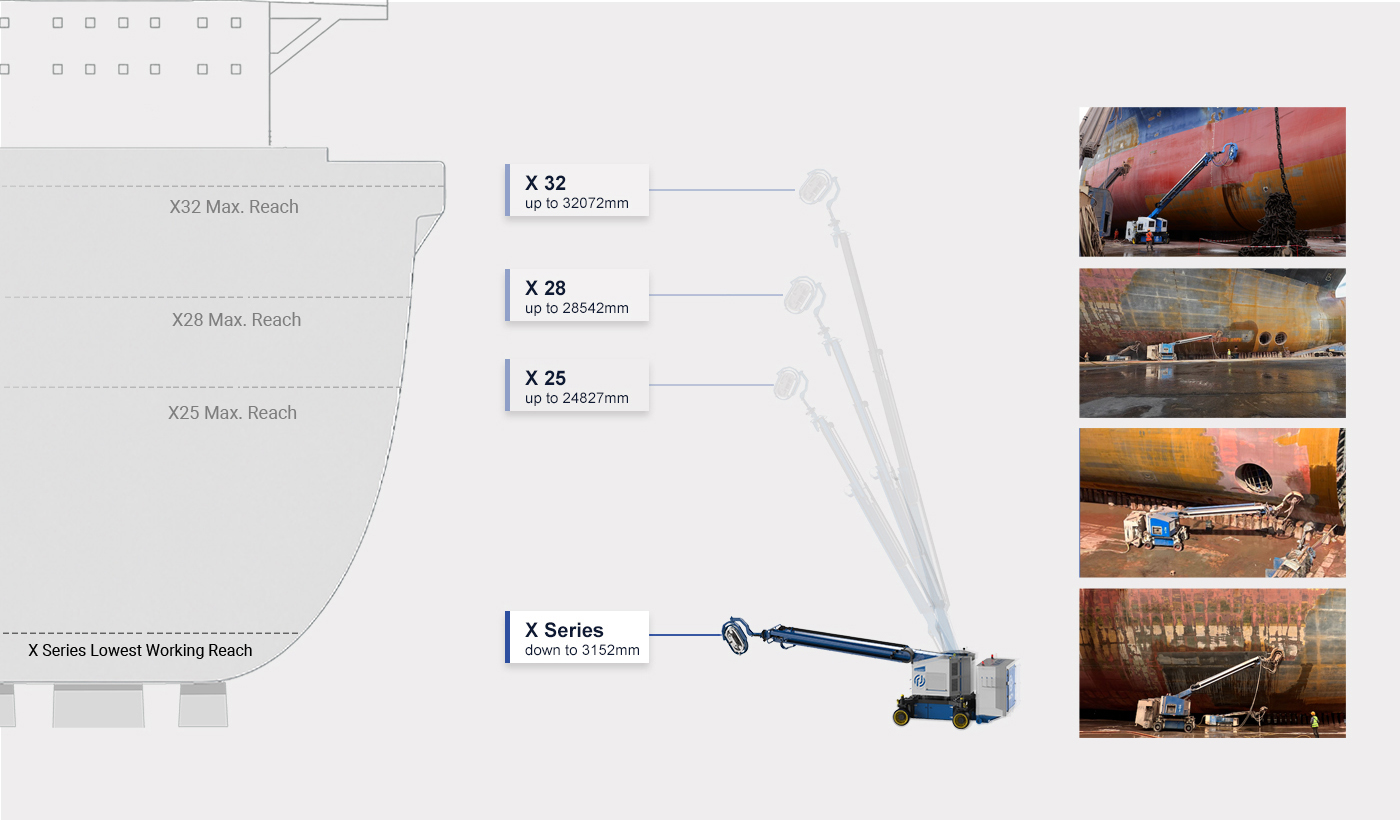

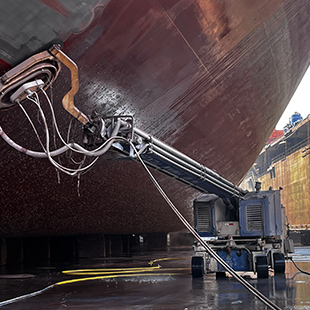

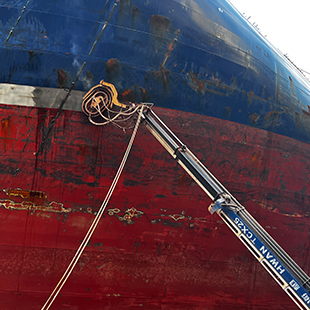

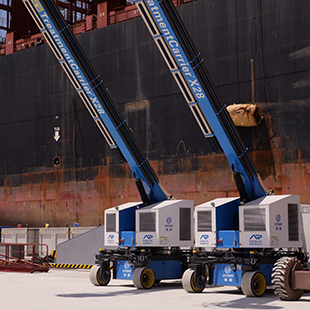

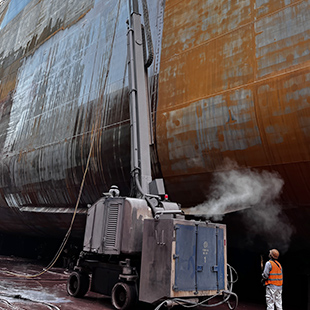

Engineered for optimal performance in large flat surfaces, Treatment Carrier X Series employs ultra-high-pressure water jetting technology,

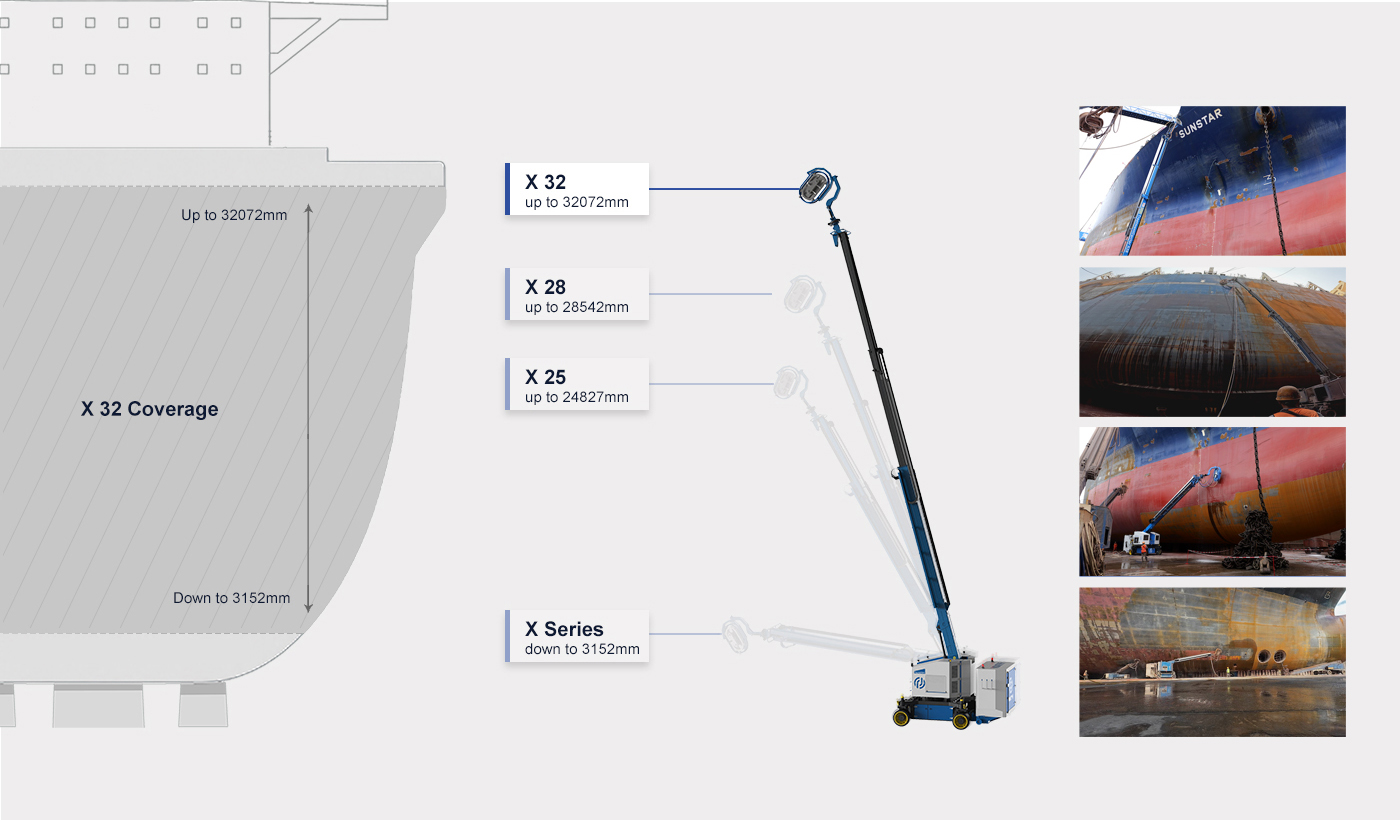

utilizing Hydwin Robotics' proprietary Al-driven core algorithms and advanced high-pressure components. Operating with a working height of
up to 32 meters and at a maximum efficiency of 120 m²/h, the X Series conforms to the Cleanliness Standard of WJ-2/Wa 2½

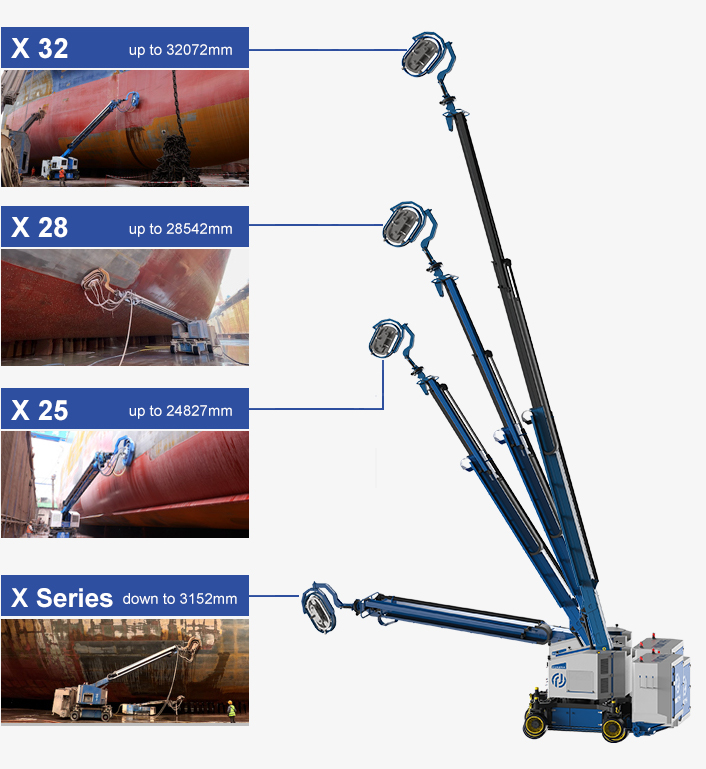

| Model | Dimension | Engine Power | Working Height | Weight | Water Pressure | Efficiency | Flow Rate |
|---|---|---|---|---|---|---|---|
| X 25 | 14871 x 2727 x 3152 (mm) |

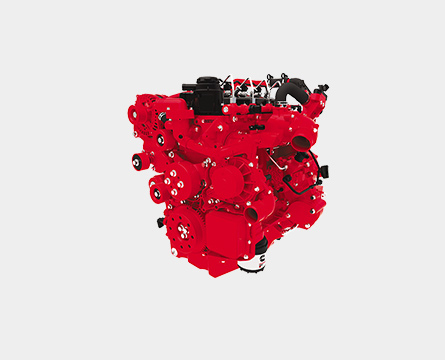

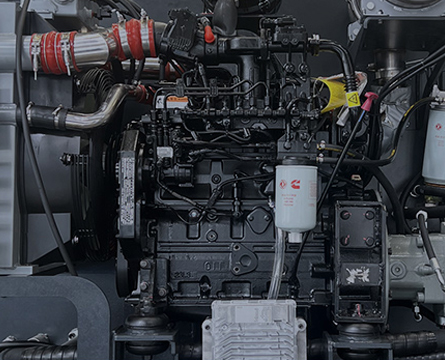

EU Stage IV/V Diesel Engine 90 kW @2200 rpm 96 kW @2400 rpm 96 kW @2500 rpm |
≤ 25 m | ≈ 21 T | ≤ 3000 bar | ≤ 120 m²/h | ≤ 100 l/min |
| X 28 | 16314 x 2727 x 3152 (mm) |
EU Stage IV/V Diesel Engine 90 kW @2200 rpm 96 kW @2400 rpm 96 kW @2500 rpm |
≤ 28 m | ≈ 19.5 T | ≤ 3000 bar | ≤ 120 m²/h | ≤ 100 l/min |
| X 32 | 17696 x 2507 x 3041 (mm) |
EU Stage IV/V Diesel Engine 90 kW @2200 rpm 96 kW @2400 rpm 96 kW @2500 rpm |
≤ 32 m | ≈ 23 T | ≤ 3000 bar | ≤ 120 m²/h | ≤ 100 l/min |
