AUTOMATED HULL COATING PLATFORM

Treatment Carrier H Series

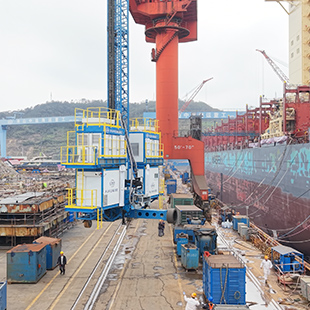

Automated Hull Coating at Scale

Treatment Carrier H is world’s first intelligent full-vessel painting platform designed for large-area ship painting. Reaching up to
34 m and delivering application rates of up to 1,500 m²/h, it integrates multi-sensor positioning, adaptive hull tracking,
constant-pressure paint supply, and closed-loop VOC treatment for precise and efficient coating operations.

Product Catalog

Want to learn more about Hydwin Robotic Solutions?

Download now

Configuration Parameters

  • Max.height
    38m
  • Max.outreach
    11m
  • Max.efficiency
    1500 m²/h
  • Max.speed
    25 m/min
  • Painting width
    800 mm
  • Weight
    ≈35T

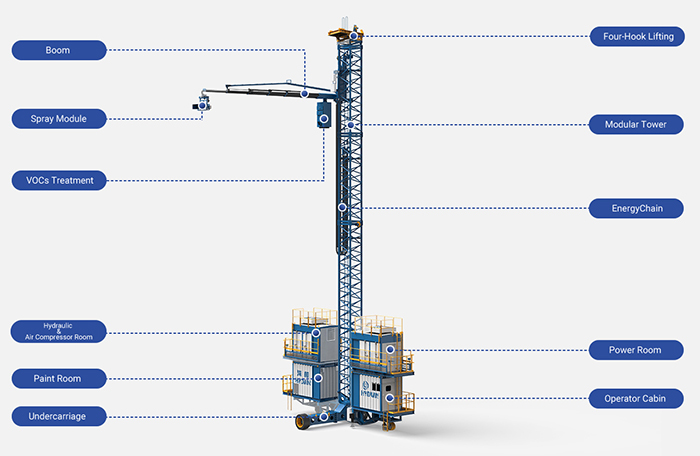

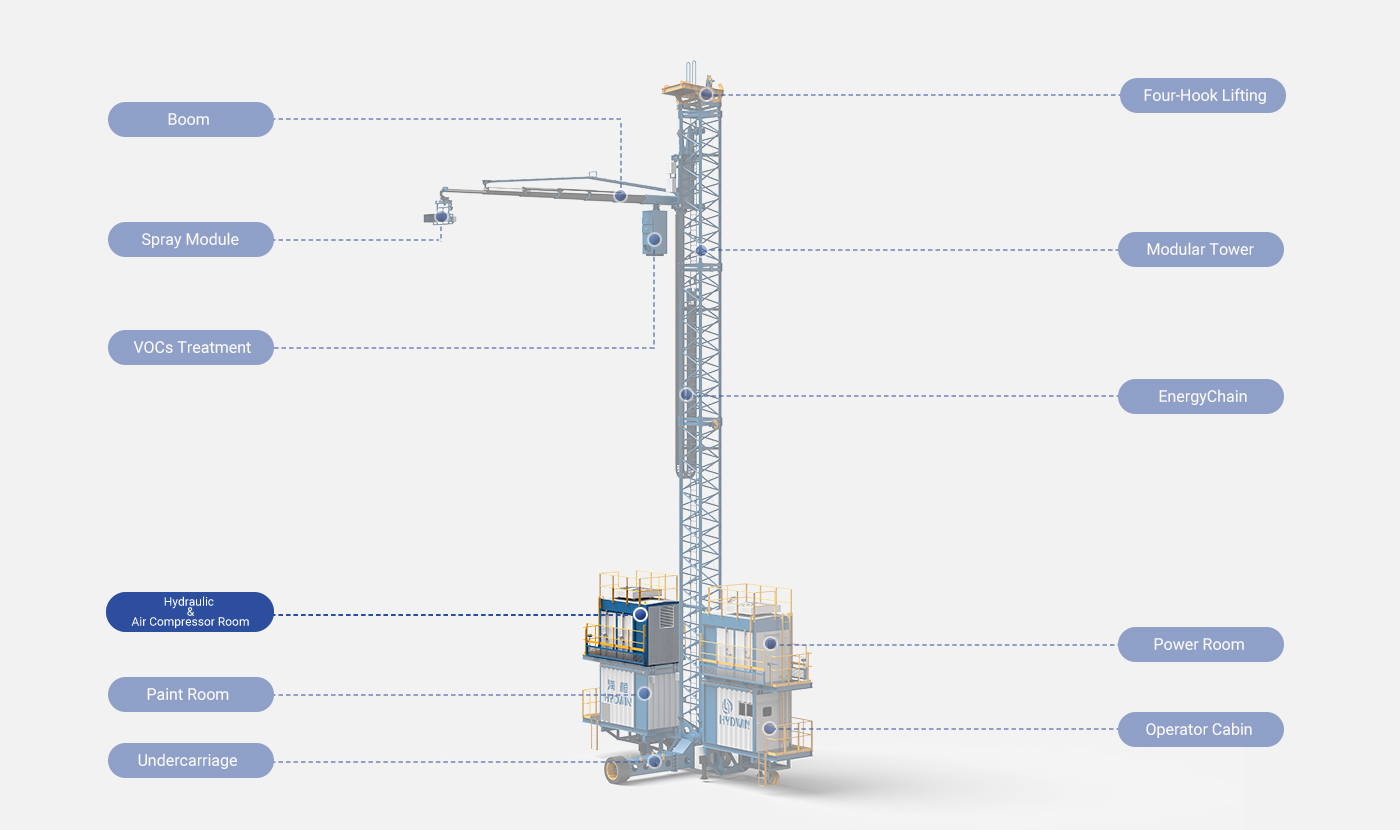

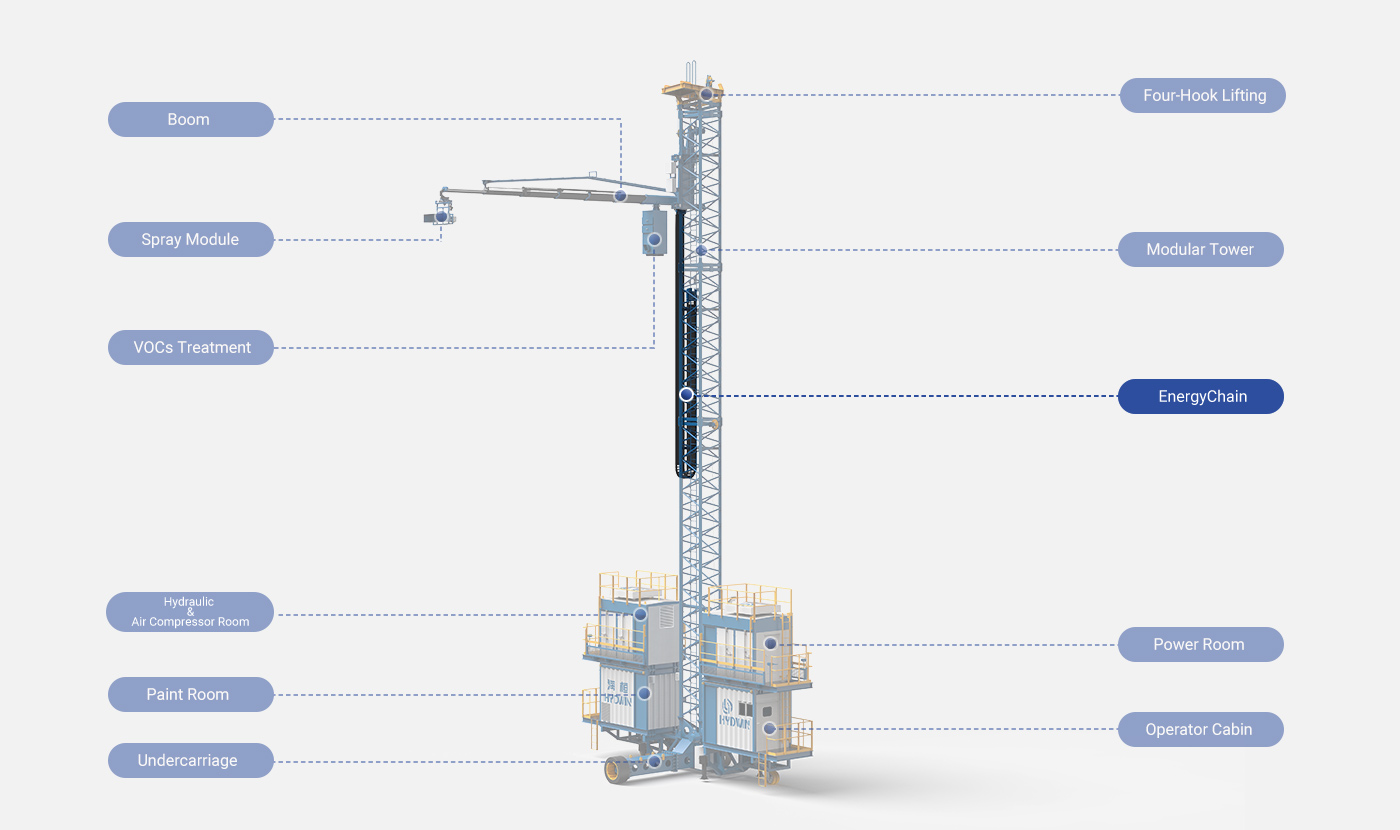

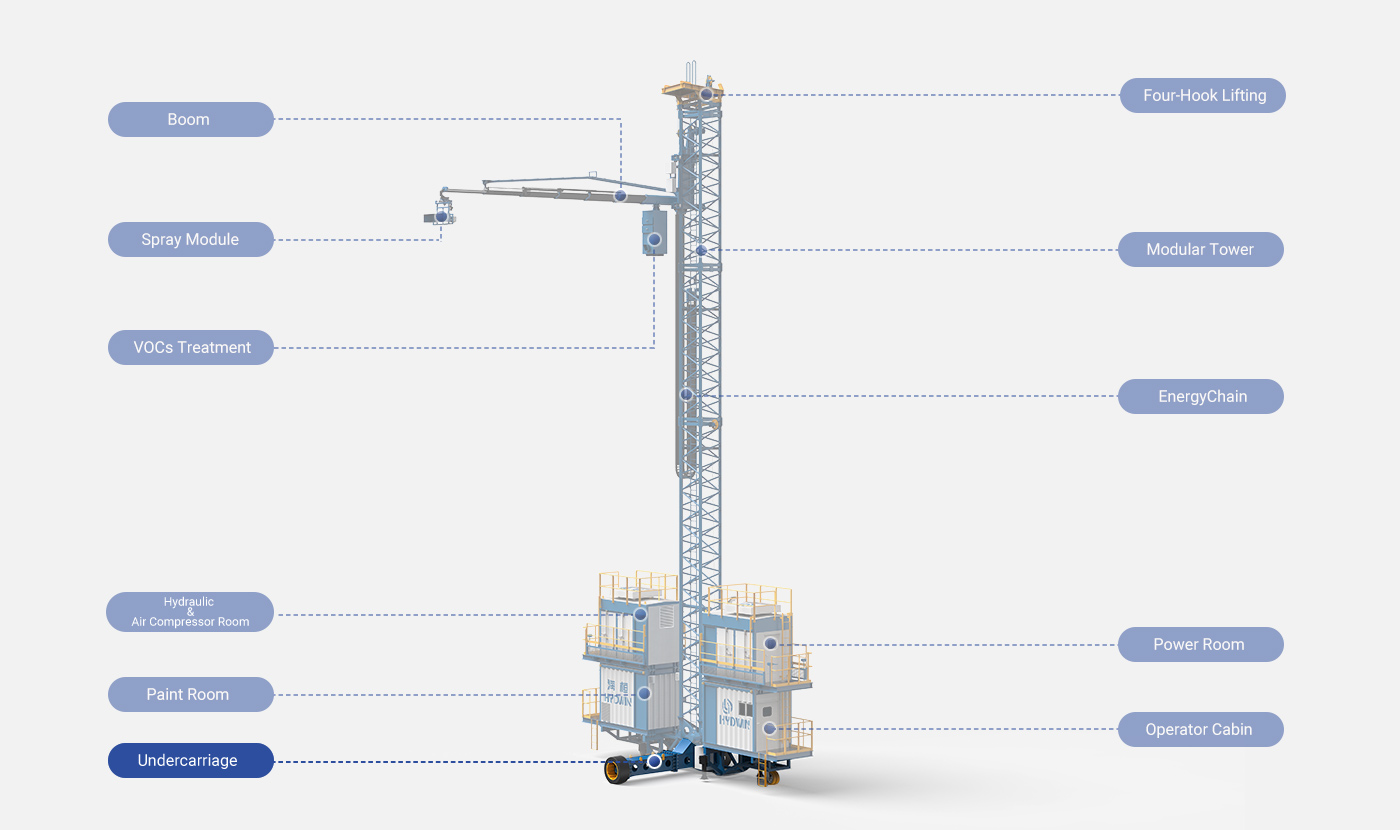

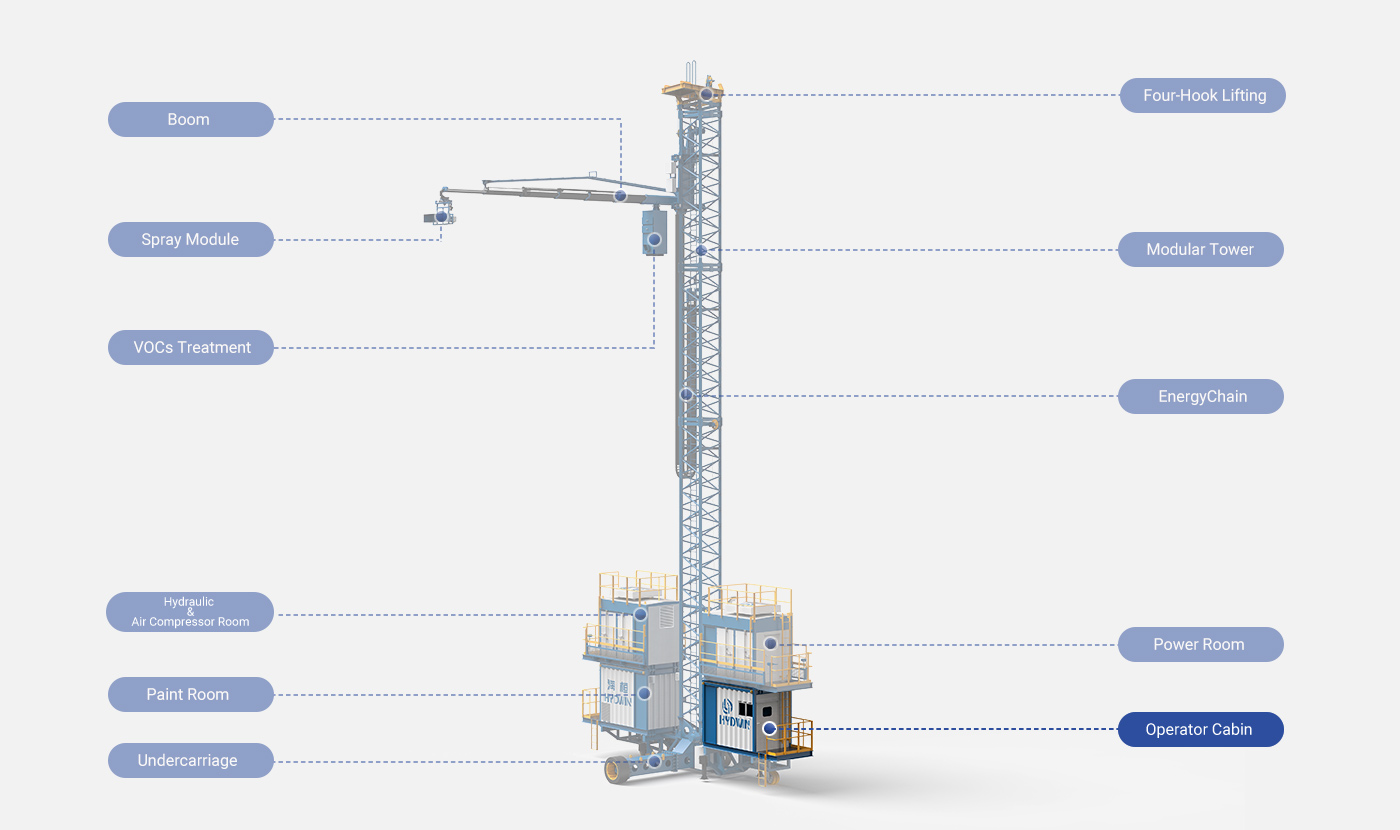

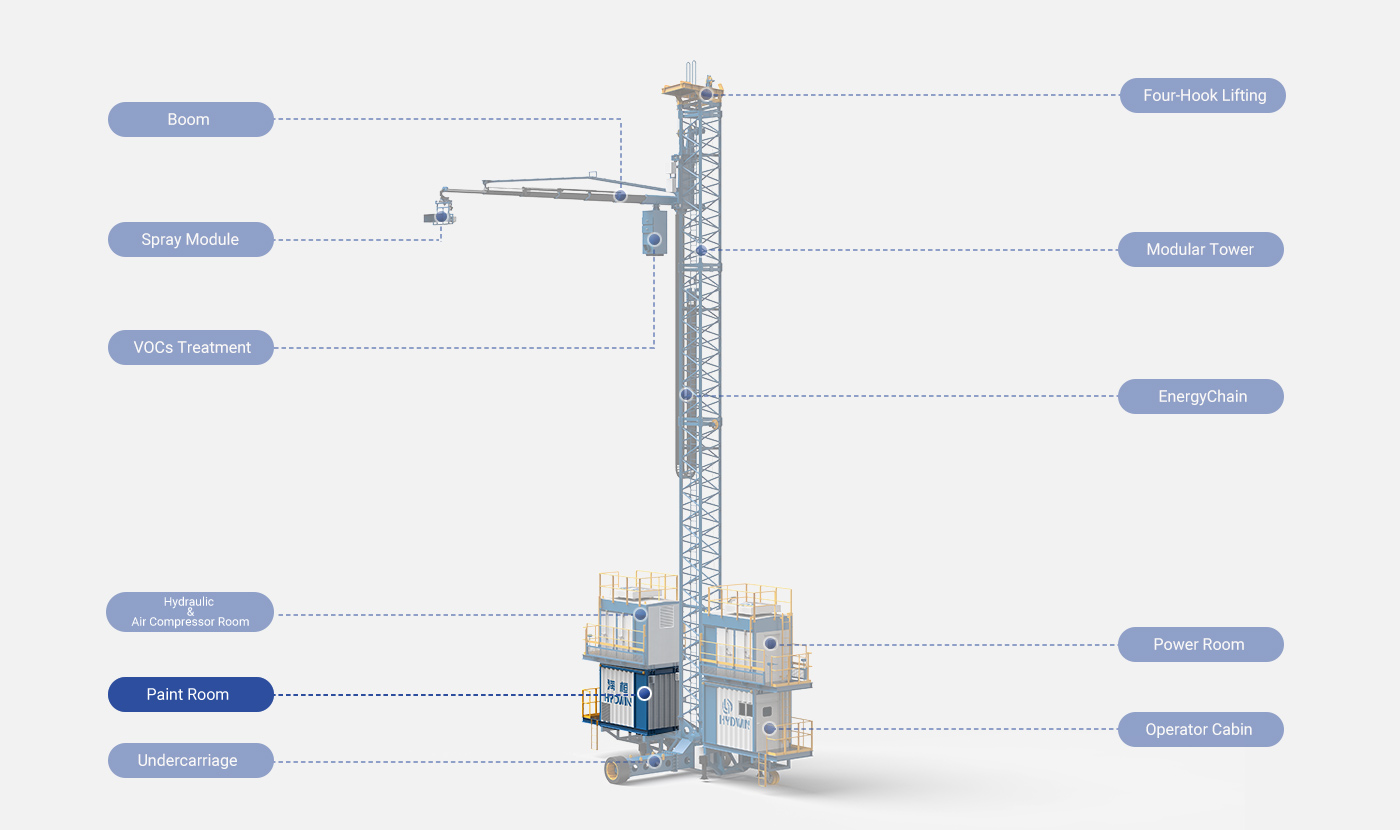

System Highlights

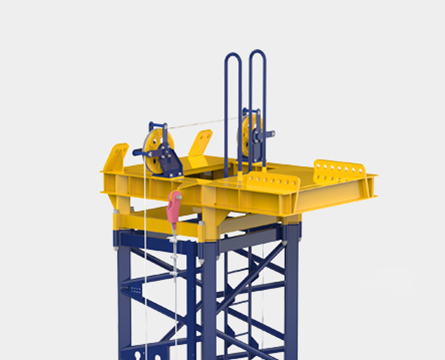

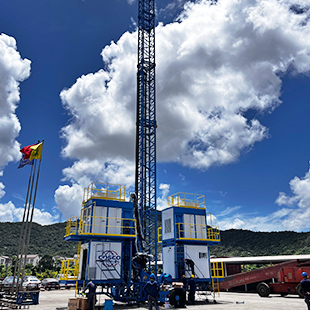

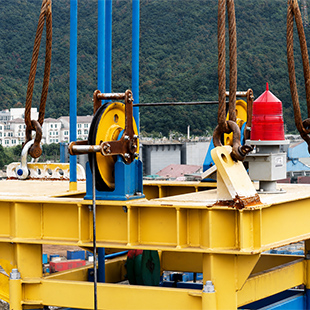

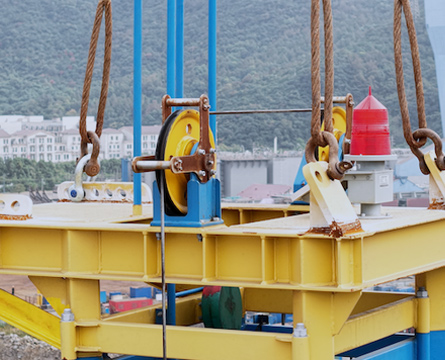

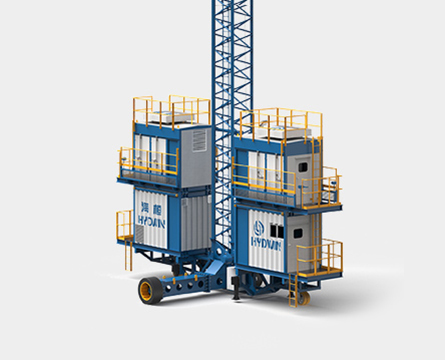

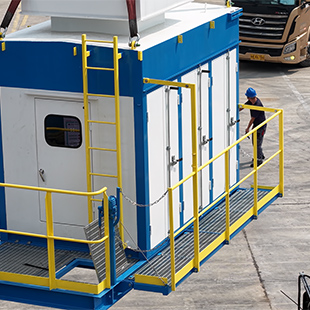

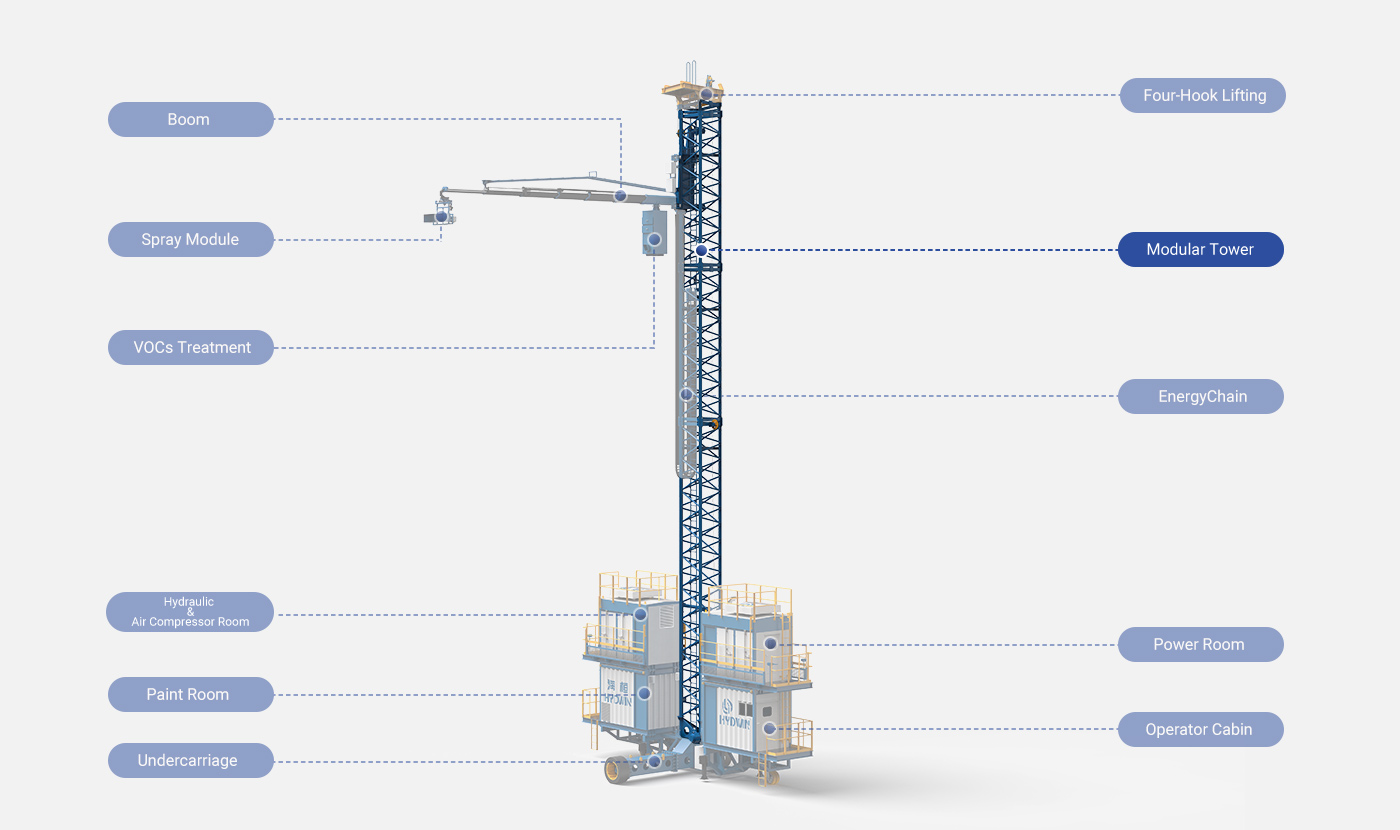

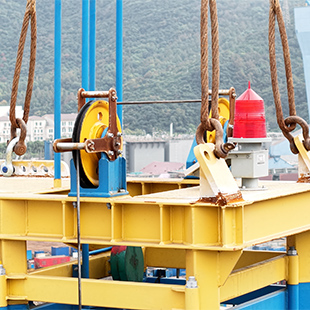

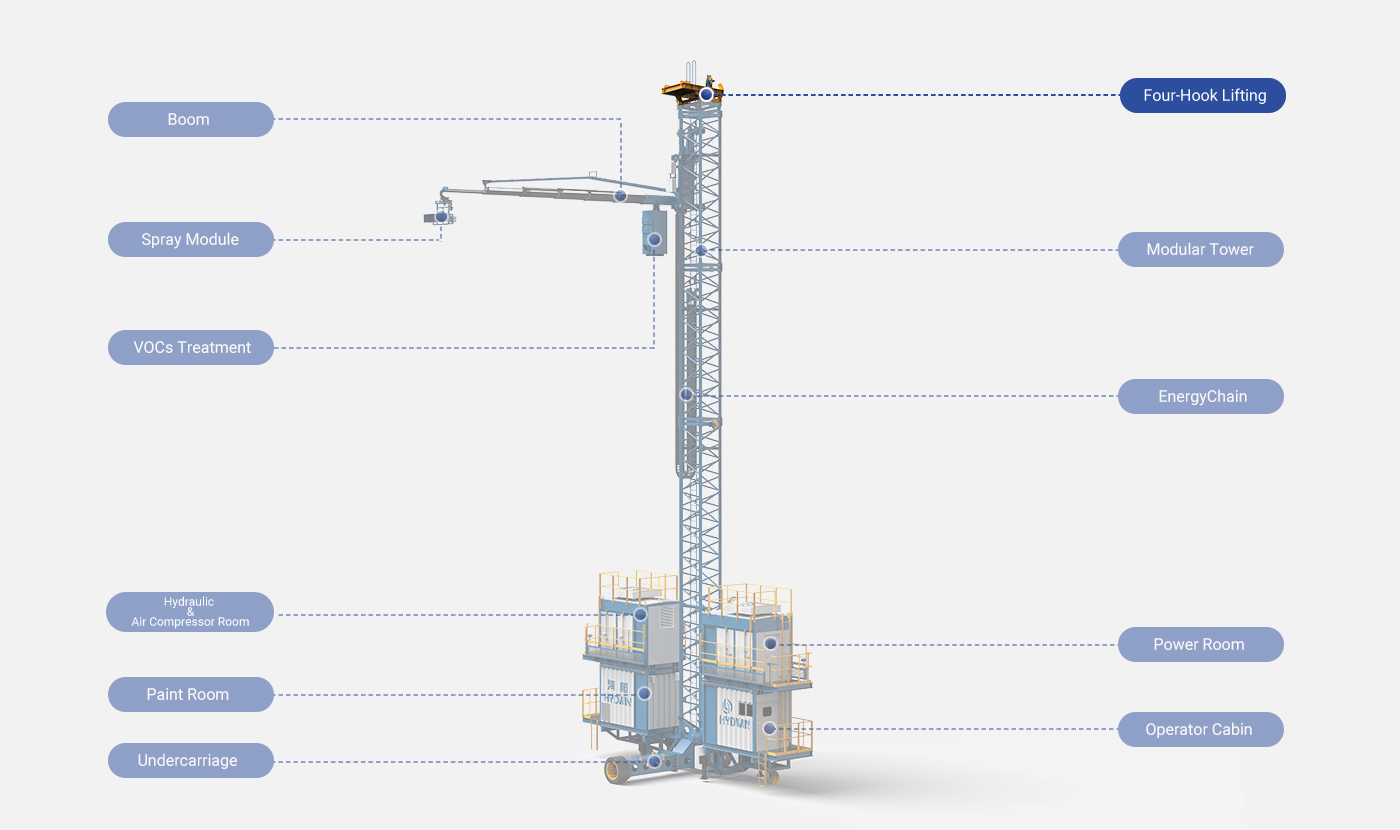

Single-Lift Docking

The system features four-hook lifting and a modular tower structure. The modular design enables fast setup, easy transport, and rapid deployment. Single-lift dock entry reduces installation time and shortens drydocking cycles.

Control System

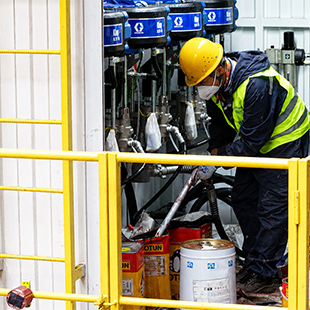

A constant-pressure paint supply provides steady delivery of single- and multi-component coatings. Millimeter-level sensors and adaptive hull-curvature tracking support spraying rates of up to 1,500 m²/h, with dynamic spray parameter adjustment for controlled overlap and WFT.

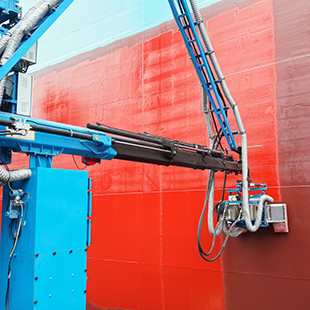

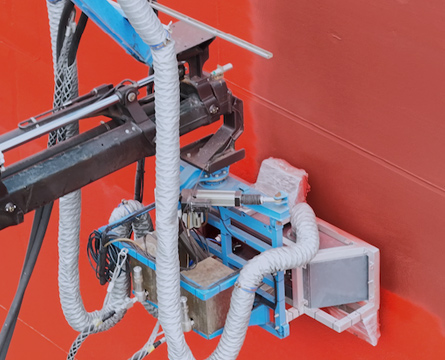

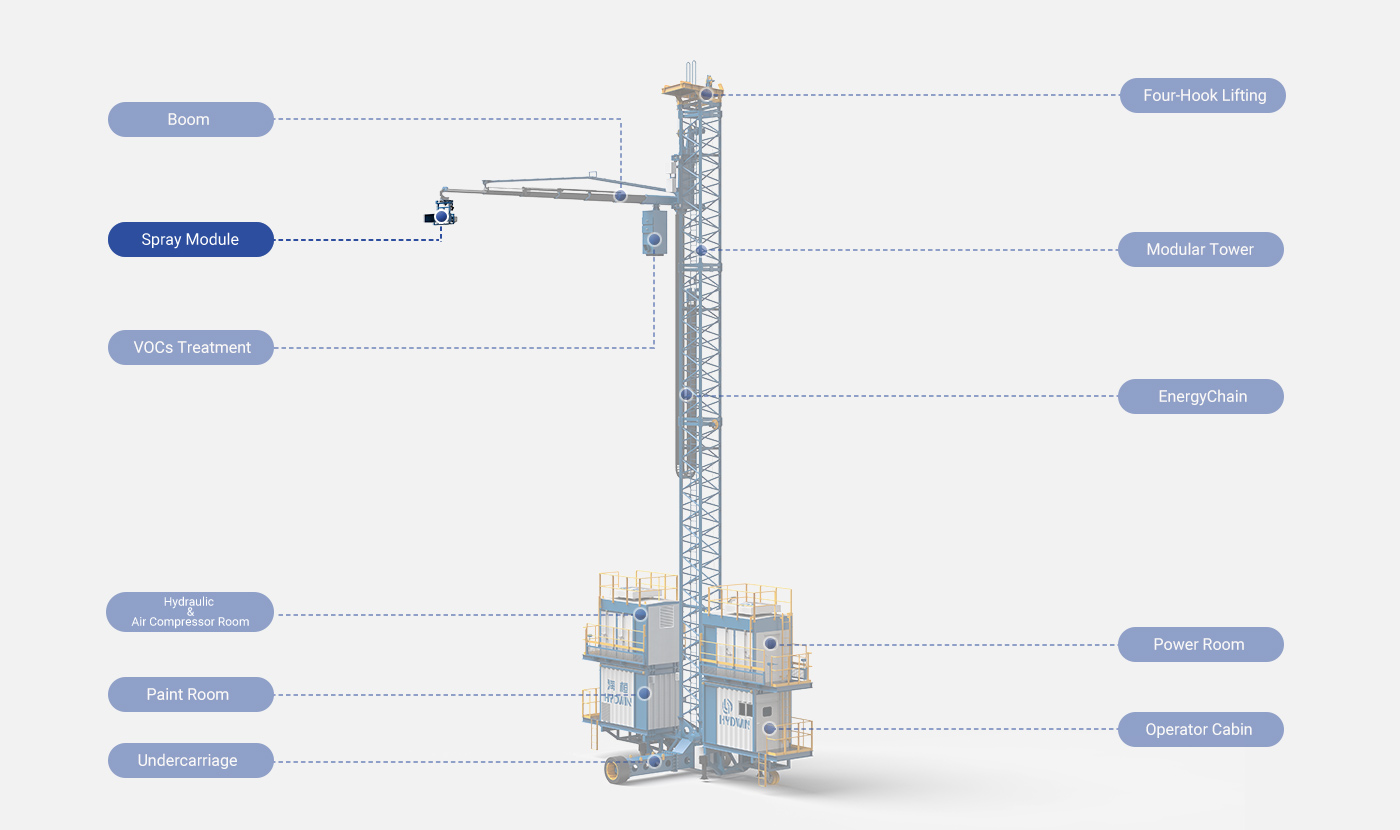

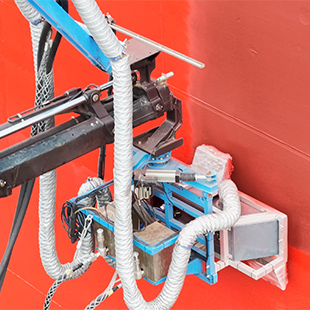

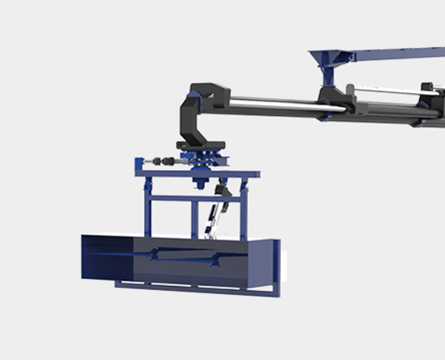

Spray Module

A constant-pressure paint supply provides steady delivery of single- and multi-component coatings. Millimeter-level sensors and adaptive hull-curvature tracking support spraying rates of up to 1,500 m²/h, with dynamic spray parameter adjustment for controlled overlap and WFT.

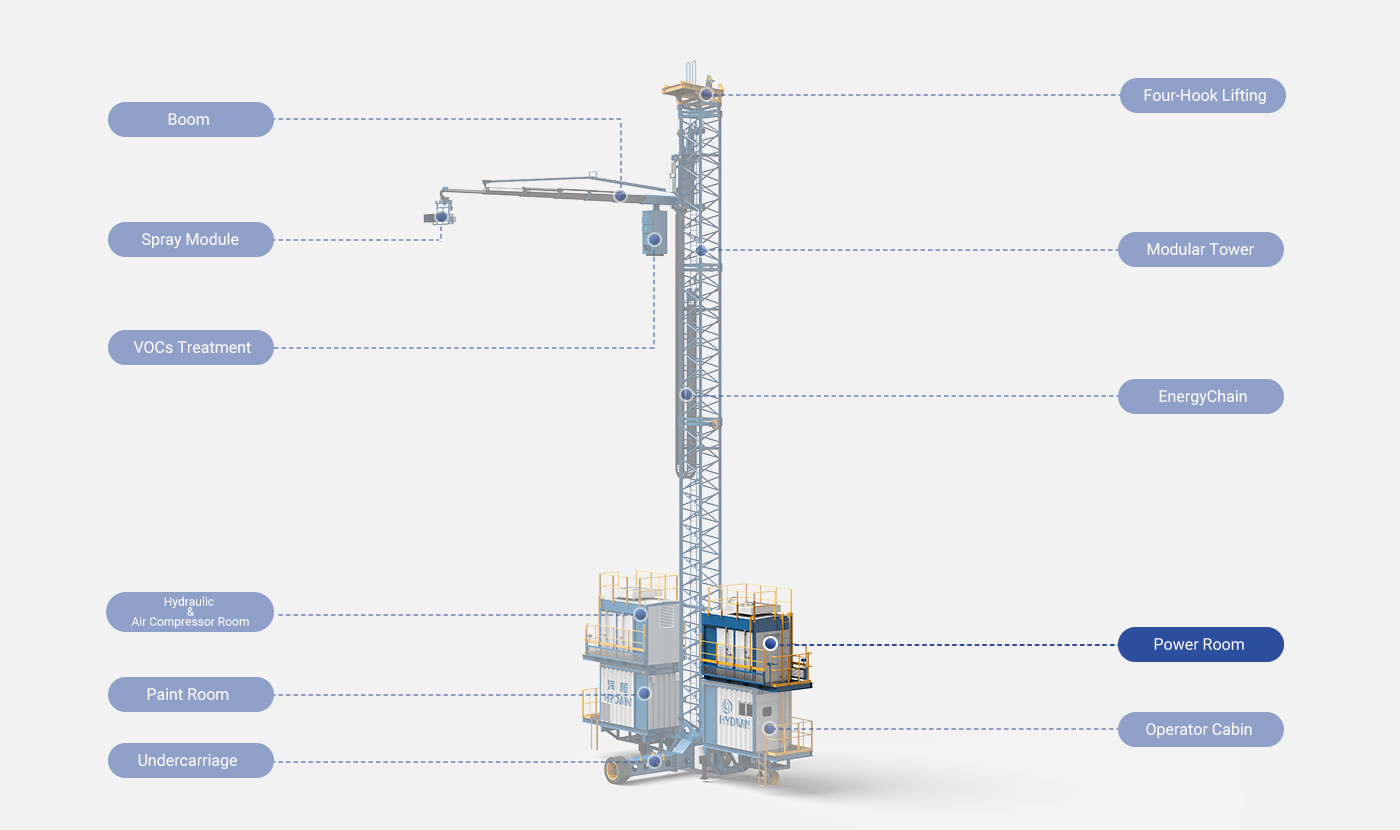

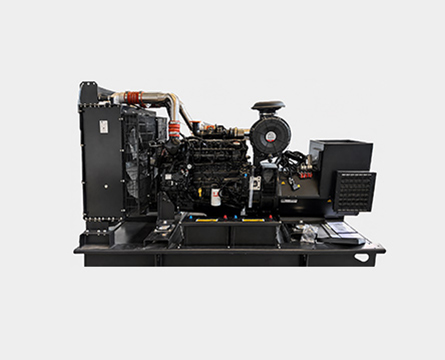

Power System

Powered by a 150 kW EU Stage V diesel generator, the system integrates intelligent temperature control, VFD control, and servo travel for precise power management and optimized energy use.

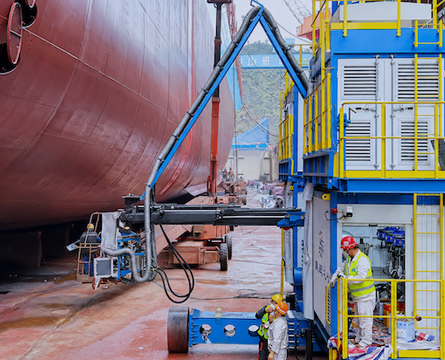

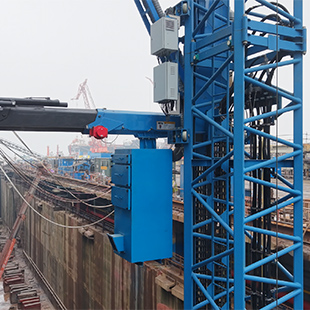

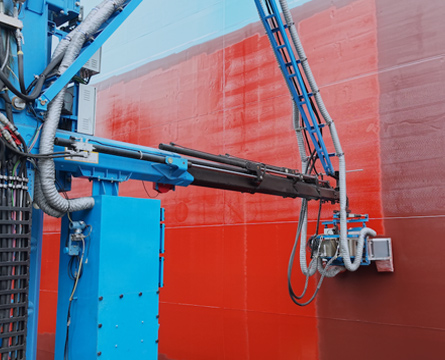

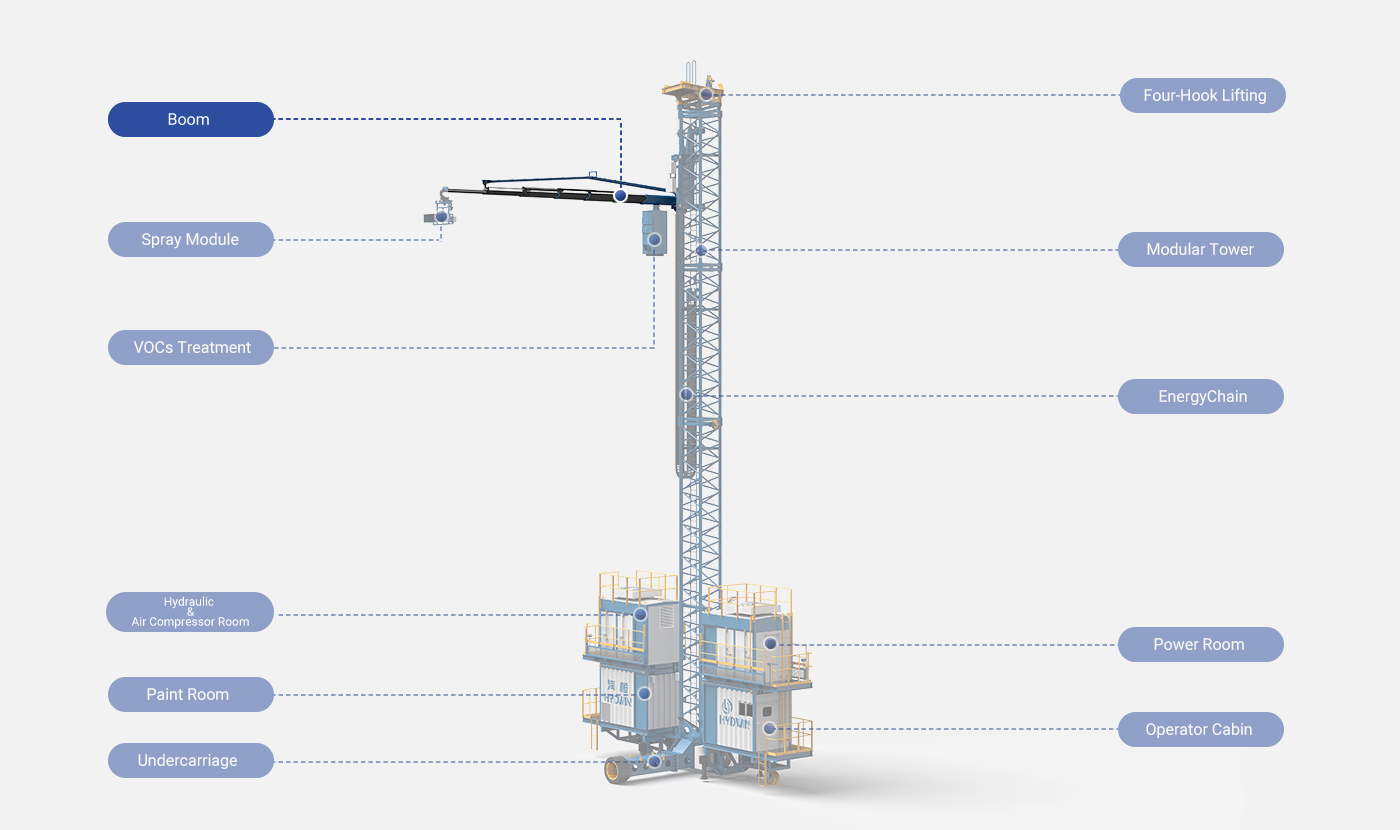

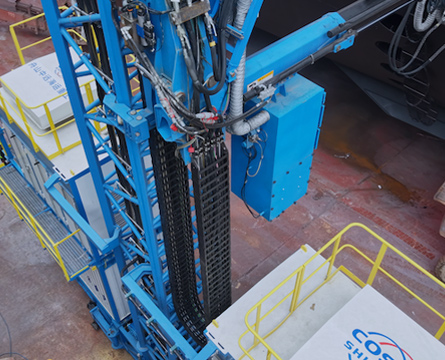

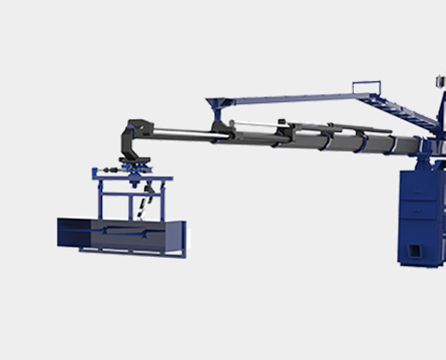

Telescopic Boom

Radar-based boom positioning supports spray speeds of up to 25 m/min, while automatic path tracking enables continuous spraying within preset zones. Adaptive hull-curvature tracking ensures consistent coating across flat and curved surfaces.

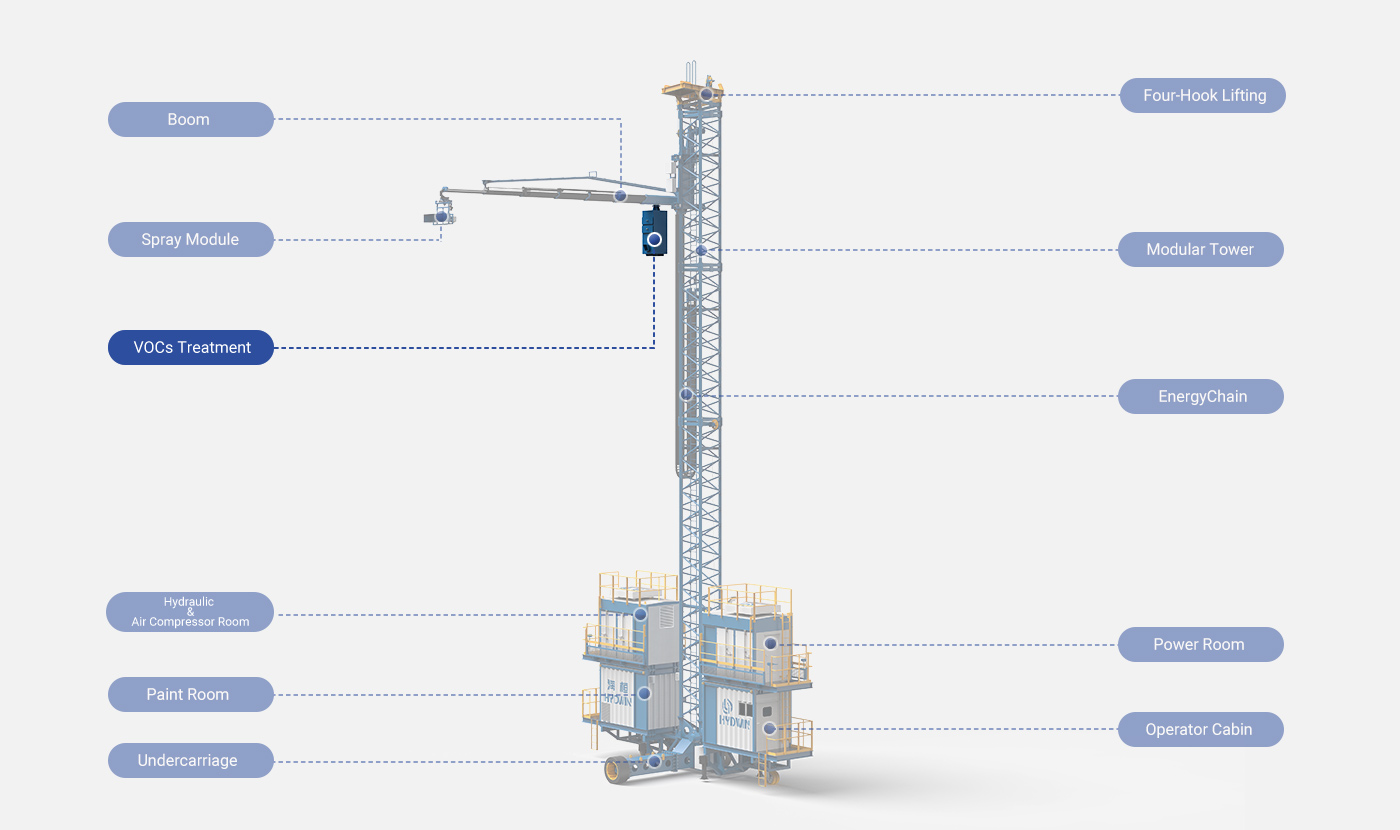

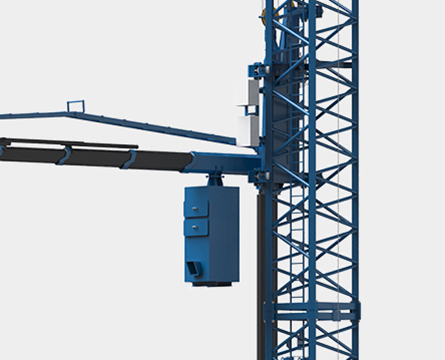

VOC Treatment

Integrated mist collection provides 95% overspray recovery, while a closed-loop system targets VOC capture and reduces airborne emissions. Coordination with the spray system supports uniform film thickness and target DFT.

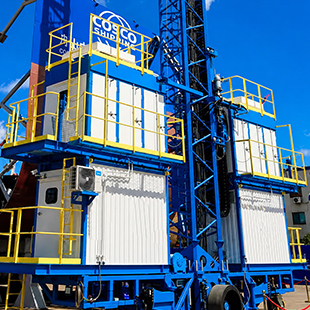

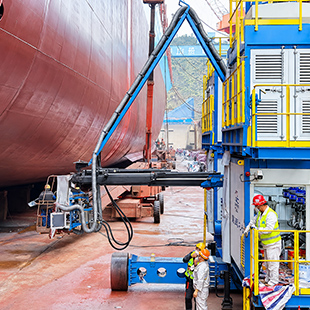

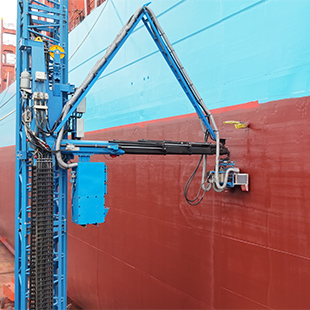

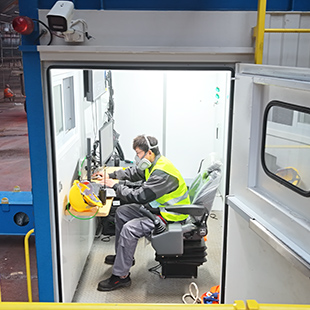

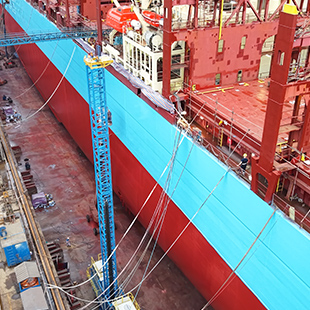

Project Showcase
